EL1014 Beckhoff | EtherCAT Terminal, 4-channel digital input, 24 V DC, 10 µs

EL1014 Beckhoff | EtherCAT Terminal, 4-channel digital input, 24 V DC, 10 µs

MOQ: 1set
Price: $1--$1000
Standard Packaging: 100% original package
Delivery Period: 1-10 working days
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
Germany
Brand Name
Beckhoff
Certification
CE
Model Number
EL1014
Brand Name:
Beckhoff
Model:
EL1014
Warranty:
1 Year
Product Type:
EtherCAT Terminal
Shipping Weight:
0.5 Kg
Estimated Lead Time:
1-10 Working Days
Product Description

EL1014 | EtherCAT Terminal, 4-channel digital input, 24 V DC, 10 µs



Product Description






The EL1014 digital input terminal acquires the binary 24 V control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The EtherCAT Terminal has four channels that indicate their signal state via light emitting diodes.





Product Information






Special features:

  • input specification type 1/3
  • low delay due to fast 10 µs input filter
  • usable, for example, for inductive or capacitive sensors
  • direct connection of four 2-wire sensors via additional +24 V connection points



Technical data EL1014
Connection technology 2-wire
Specification EN 61131-2, type 1/3
Number of inputs 4
Nominal voltage 24 V DC (-15%/+20%)
“0” signal voltage -3…+5 V (EN 61131-2, type 3)
“1” signal voltage 11…30 V (EN 61131-2, type 3)
Input current typ. 3 mA (EN 61131-2, type 3)
Input filter typ. 10 µs
Distributed clocks
Current consumption power contacts typ. 2 mA + load
Current consumption E-bus typ. 90 mA
Electrical isolation 500 V (E-bus/field potential)
Configuration no address or configuration setting
Special features standard input terminals f0r 2-wire connection
Weight approx. 50 g
Operating/storage temperature -25…+60°C/-40…+85°C
Relative humidity 95%, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP20/variable
Pluggable wiring for all ESxxxx terminals
Approvals/markings CE, UL, ATEX, IECEx, DNV GL
Ex marking ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc







Technical data EL1014
Connection technology 2-wire
Specification EN 61131-2, type 1/3
Number of inputs 4
Nominal voltage 24 V DC (-15%/+20%)
“0” signal voltage -3…+5 V (EN 61131-2, type 3)
“1” signal voltage 11…30 V (EN 61131-2, type 3)
Input current typ. 3 mA (EN 61131-2, type 3)
Input filter typ. 10 µs
Distributed clocks
Current consumption power contacts typ. 2 mA + load
Current consumption E-bus typ. 90 mA
Electrical isolation 500 V (E-bus/field potential)
Configuration no address or configuration setting
Special features standard input terminals f0r 2-wire connection
Weight approx. 50 g
Operating/storage temperature -25…+60°C/-40…+85°C
Relative humidity 95%, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP20/variable
Pluggable wiring for all ESxxxx terminals
Approvals/markings CE, UL, ATEX, IECEx, DNV GL
Ex marking ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc

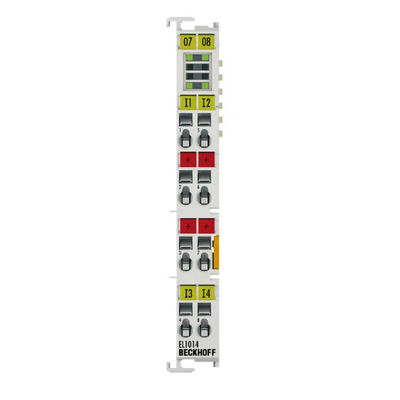

Product Photo






EL1014 Beckhoff  | EtherCAT Terminal, 4-channel digital input, 24 V DC, 10 µs 0

EL1014 Beckhoff  | EtherCAT Terminal, 4-channel digital input, 24 V DC, 10 µs 1





More Products






EL1008 EL2024 EL5122
EL1904 EL2622 el2596
EL5101 EL6601 EL3014
EK1122 EL1004 KL9190
EL9195 EL7201 KL2622
EL4032 KL3062 KL1104
EL9110 KL3002 KL3351
EL6900 EL6022 KL3042
EL2034 EL4132 KL9505
EL3061 EL6002 KL6021
EL2008 EL1889 KL2134
EL9410 EL6910 KL9195
EL4112-0010 EL2912 KL3356
KL9010 BK9103 KL4002
BK9053 EL3204 EL1014
EL6021 EL9100 el9576
EL6731 EL9400 EK1122-0008
BK1120 EL3102 CX9020-0111
KL2022 EL3314 EL9184
BK3150 EL4312 EL3201





Cooperative Brand






(DCS)

ABB / TRICONEX / FOXBORO/ I/A / HONEYWELL / TDC2000/3000 / YOKOGAWA / BENTLY NEVADA

(PLC)

B&R / ALLEN BRADLEY / BECKHOFF / HONEYWELL / OMRON / SIEMENS

(SENSOR)

IFM / SICK/ P+F/ WENGLOR / BAUMER / LEUZE / HOLLY/ SYSHOKUYO / EUCHNER

(CONNECTOR)

HARTING / PHOENIX CONTACT/ WEIDMUELLER

(VALVE)

SMC / FESTO / +GF+.......

(INSTRUMENT)

+GF+ /E+H / HITACHI / ROSEMOUNT





Why Choose Us






Xiamen ZhiCheng Automation Technology Co., Ltd it is a leading global supplier of control system components. We specialize in control systems and drives. With many years of experience in the industrial sector, we consistently deliver the highest quality of spare parts. We have tens of thousands of spare partsand spare parts warehouse . Products and services to serve for installing of users control system,Distributed control systems, programmable controllers, panel controller and drive!



We major in DCS system,Sensor,PLC,Connector,Valve, and Instrument,MAGNETRON,RO Membrane. With many years of experience in the industrial sector, we consistently deliver the highest quality of spare parts.which make sure that all this jobs are perfectly. If you have any further questions, please don't hesitate to contact us.
