EL1002 Beckhoff | EtherCAT Terminal, 2-channel digital input, 24 V DC, 3 ms

EL1002 Beckhoff | EtherCAT Terminal, 2-channel digital input, 24 V DC, 3 ms

MOQ: 1set
Price: $1--$1000
Standard Packaging: 100% original package
Delivery Period: 1-10 working days
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
Germany
Brand Name
Beckhoff
Certification
CE
Model Number
EL1002
Brand Name:
Beckhoff
Model:
EL1002
Warranty:
1 Year
Product Type:
EtherCAT Terminal
Shipping Weight:
0.5 Kg
Estimated Lead Time:
1-10 Working Days
Product Description

Beckhoff EL1002 | EtherCAT Terminal, 2-channel digital input, 24 V DC, 3 ms





Product Description

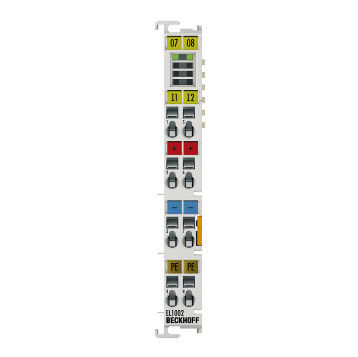

The EL1002 digital input terminal acquires the binary 24 V control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The EtherCAT Terminal has two channels that indicate their signal state via light emitting diodes.





Product Information






Technical data

EL1002

Connection technology

4-wire

Specification

EN 61131-2, type 1/3

Number of inputs

2

Nominal voltage

24 V DC (-15%/+20%)

“0” signal voltage

-3…+5 V (EN 61131-2, type 3)

“1” signal voltage

11…30 V (EN 61131-2, type 3)

Input current

typ. 3 mA (EN 61131-2, type 3)

Input filter

typ. 3.0 ms

Distributed clocks

Current consumption power contacts

typ. 2 mA + load

Current consumption E-bus

typ. 90 mA

Electrical isolation

500 V (E-bus/field potential)

Configuration

no address or configuration setting

Special features

4-wire connection

Weight

approx. 50 g

Operating/storage temperature

-25…+60°C/-40…+85°C

Relative humidity

95%, no condensation

Vibration/shock resistance

conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission

conforms to EN 61000-6-2/EN 61000-6-4

Protect. rating/installation pos.

IP20/variable

Pluggable wiring

for all ESxxxx terminals

Approvals/markings

CE, UL, ATEX, IECEx, DNV GL, cFMus

Ex marking

ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
cFMus:
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, AEx ec IIC T4 Gc





Housing data

EL-12-8pin

ES-12-8pin

Design form

compact terminal housing with signal LEDs

terminal housing with pluggable wiring level

Material

polycarbonate

Dimensions (W x H x D)

12 mm x 100 mm x 68 mm

Installation

on 35 mm DIN rail, conforming to EN 60715 with lock

Side by side mounting by means of

double slot and key connection

Marking

labeling of the BZxxx series

Wiring

solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver

Connection cross-section

s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm²

s*: 0.08…1.5 mm²,
st*: 0.08…1.5 mm²,
f*: 0.14…1.5 mm²

Connection cross-section AWG

s*: AWG28…14,
st*: AWG28…14,
f*: AWG26…16

s*: AWG28…16,
st*: AWG28…16,
f*: AWG26…16

Stripping length

8…9 mm

9…10 mm

Current load power contacts

Imax: 10 A







Product Photo






EL1002 Beckhoff  | EtherCAT Terminal, 2-channel digital input, 24 V DC, 3 ms 0

EL1002 Beckhoff  | EtherCAT Terminal, 2-channel digital input, 24 V DC, 3 ms 1
