EL6021 Beckhoff EtherCAT Terminal, 1-channel communication interface, serial, RS422/RS485

EL6021 Beckhoff EtherCAT Terminal, 1-channel communication interface, serial, RS422/RS485

MOQ: 1
Price: $200-$300
Standard Packaging: NEW BOX 20*30*50
Delivery Period: 3-5DAYS
Ethercat Terminal, 1 Channel Communication Interface, Serial, Rs422/Rs485
Payment Method: T/T
Supply Capacity: 50PCS
Detail Information
Place of Origin
GERMANY
Brand Name
BECKHOFF
Model Number
EL6021
Connection Technology:
Terminal Contact
Data Transfer Channels:
TxD And RxD, Full/half Duplex
Bit Transfer:
With Differential Signal
Interfaces:
1 X RS422/RS485
Technical Data EL6021 Connection Technology Terminal Contact Data Transfer Channels TxD And RxD, Ful:
120 Ω
Cable Length:
Approx. 1000 M Twisted Pair
Power Supply:
Via The E-bus
Weight:
Approx. 55 G
Highlight:

EL6021 Data Transfer Channels

,

EL6021 Terminal Contact Connection Technology

Product Description

EL6021 | EtherCAT Terminal, 1-channel communication interface, serial, RS422/RS485



Product Description






The EL6021 serial interface enables the connection of devices with RS422 or RS485 interface. These devices communicate with the automation device via the coupler. The active communication channel operates independently of the higher-level bus system in full or half duplex mode at up to 115.2 kbaud. The transmission of differential signals according to RS422 guarantees high immunity to interference through electrically isolated signals.



In conjunction with the TwinCAT Virtual Serial COM Driver (see TwinCAT Supplements – Communication) the EL6021 can be used as a normal Windows COM interface.





Product Information






Technical data

EL6021

Connection technology

terminal contact

Data transfer channels

TxD and RxD, full/half duplex

Data transfer rates

2400…115,200 baud; default: 9600 baud, 8 data bits, no parity and one stop bit

Bit transfer

with differential signal

Interfaces

1 x RS422/RS485

Line impedance

120 Ω

Cable length

approx. 1000 m twisted pair

Providing external supply

Power supply

via the E-bus

Distributed clocks

Electrical isolation

500 V (E-bus/signal voltage)

Data buffer

864 bytes receive buffer, 128 bytes transmit buffer

Configuration

no address setting, configuration via PLC

Current consumption power contacts

Current consumption E-bus

typ. 170 mA

Weight

approx. 55 g

Operating/storage temperature

-25…+60°C/-40…+85°C

Relative humidity

95%, no condensation

Vibration/shock resistance

conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission

conforms to EN 61000-6-2/EN 61000-6-4

Protect. rating/installation pos.

IP20/variable

Pluggable wiring

for all ESxxxx terminals

Approvals/markings

CE, UL, ATEX, IECEx, cFMus

Ex marking

ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
cFMus:
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, AEx ec IIC T4 Gc







Housing data

EL-12-8pin

ES-12-8pin

Design form

compact terminal housing with signal LEDs

terminal housing with pluggable wiring level

Material

polycarbonate

Dimensions (W x H x D)

12 mm x 100 mm x 68 mm

Installation

on 35 mm DIN rail, conforming to EN 60715 with lock

Side by side mounting by means of

double slot and key connection

Marking

labeling of the BZxxx series

Wiring

solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver

Connection cross-section

s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm²

s*: 0.08…1.5 mm²,
st*: 0.08…1.5 mm²,
f*: 0.14…1.5 mm²

Connection cross-section AWG

s*: AWG28…14,
st*: AWG28…14,
f*: AWG26…16

s*: AWG28…16,
st*: AWG28…16,
f*: AWG26…16

Stripping length

8…9 mm

9…10 mm

Current load power contacts

Imax: 10 A







Product Photo

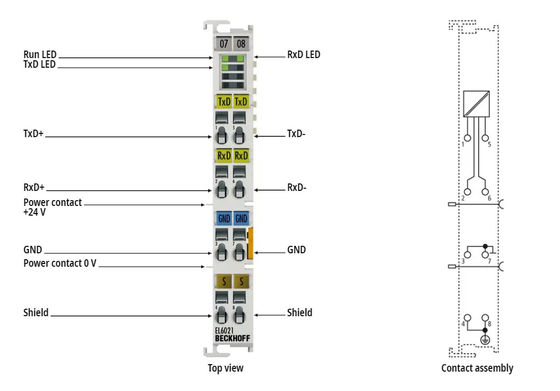

EL6021 Beckhoff EtherCAT Terminal, 1-channel communication interface, serial, RS422/RS485 0

EL6021 Beckhoff EtherCAT Terminal, 1-channel communication interface, serial, RS422/RS485 1
