KL9010 Beckhoff IECEx Approved Beckhoff End Terminal
  • Name
  • Name
  • Name
  • Name

KL9010 Beckhoff IECEx Approved Beckhoff End Terminal

MOQ: 1
Price: $200-$300
Standard Packaging: NEW BOX 20*30*50
Delivery Period: 3-5DAYS
End Terminal For Bus Communication Housing Width 12mm
Payment Method: T/T
Supply Capacity: 50PCS
Details Information
Product Description
Detail Information
Place of Origin
GERMANY
Brand Name
BECKHOFF
Model Number
KL9010
K-bus, Looped Through:
–/yes
Housing Width:
12 Mm
Special Features:
End Terminal For Bus Communication
Weight:
Approx. 50 G
Operating/storage Temperature:
-25…+60°C/-40…+85°C
Approvals/markings:
CE, UL, ATEX, IECEx, DNV GL, CFMus
Highlight:

IECEx Approved Beckhoff KL9010 End Terminal

,

Beckhoff KL9010 End Terminal

,

KL9010 End Terminal

Product Description

KL9010 Beckhoff IECEx Approved Beckhoff End Terminal



Product Description





The KL9010 bus end terminal is necessary for data exchange between the Bus Coupler and the Bus Terminals. Each assembly must be terminated at the right hand end with a KL9010 bus end terminal. The bus end terminal does not have any other function or connection facility.





Product Information





Technical data KL9010
Current load –
Integrated fine-wire fuse –
Power LED –
Defect LED –
Diagnostics –
Starting current –
Current consumption K-bus –
Nominal voltage –
Electrical isolation –
Reported to K-bus –
PE contact –
Shield connection –
Renewed infeed –
Connection facility to additional power contact –
K-bus, looped through –/yes
Bit width in the process image 0
Electrical connection to DIN rail –
Housing width 12 mm
Special features end terminal for bus communication
Weight approx. 50 g
Side by side mounting on Bus Terminals with power contact yes
Side by side mounting on Bus Terminals without power contact yes
Operating/storage temperature -25…+60°C/-40…+85°C
Approvals/markings CE, UL, ATEX, IECEx, DNV GL, cFMus
Ex marking ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
cFMus:
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, AEx ec IIC T4 Gc





Housing data KL-12-8pin KS-12-8pin
Design form compact terminal housing with signal LEDs terminal housing with pluggable wiring level
Material polycarbonate
Dimensions (W x H x D) 12 mm x 100 mm x 68 mm
Installation on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of double slot and key connection
Marking labeling of the BZxxx series
Wiring solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm²		 s*: 0.08…1.5 mm²,
st*: 0.08…1.5 mm²,
f*: 0.14…1.5 mm²
Connection cross-section AWG s*: AWG28…14,
st*: AWG28…14,
f*: AWG26…16		 s*: AWG28…16,
st*: AWG28…16,
f*: AWG26…16
Stripping length 8…9 mm 9…10 mm
Current load power contacts Imax: 10 A

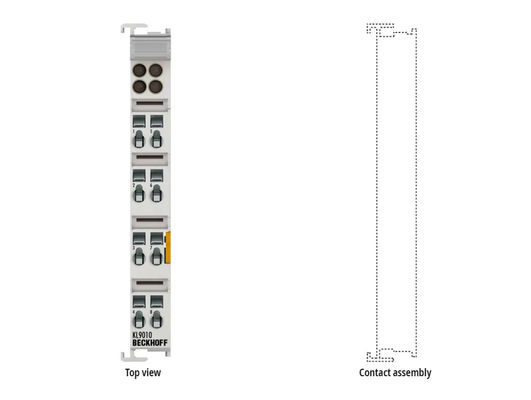

Product Photo



KL9010 Beckhoff IECEx Approved Beckhoff End Terminal 0

KL9010 Beckhoff IECEx Approved Beckhoff End Terminal 1
