EL1904 Beckhoff | EtherCAT Terminal, 4-channel digital input, 24 V DC, TwinSAFE

EL1904 Beckhoff | EtherCAT Terminal, 4-channel digital input, 24 V DC, TwinSAFE

MOQ: 1
Price: $200-$300
Standard Packaging: NEW BOX 20*30*50
Delivery Period: 3-5DAYS
EtherCAT Terminal, 4-Channel Digital Input, 24 V DC, TwinSAFE
Payment Method: T/T
Supply Capacity: 50PCS
Detail Information
Place of Origin
GERMANY
Brand Name
BECKHOFF
Model Number
EL1904
Number Of Inputs:
4
Connection Technology:
1-/2-wire
Material:
Polycarbonate
Stripping Length:
8…9 Mm
Protocol:
TwinSAFE/Safety Over EtherCAT
Installation Position:
Horizontal
Dimensions (W X H X D):
12 Mm X 100 Mm X 68 Mm
Weight:
Approx. 50 G
Product Description

Beckhoff EL1904 EtherCAT Terminal, 4-Channel Digital Input, 24 V DC, TwinSAFE



Product Description






The EL1904 TwinSAFE component is a digital input terminal for sensors with potential-free contacts for 24 V DC. It has four fail-safe inputs. The signals are transmitted via FSoE to a TwinSAFE Logic-capable component and can be used there to evaluate them in terms of safety.



The EL1904 has safety parameters to adapt the functionality specifically to the respective safety-oriented requirements (e.g., 1-channel evaluation vs. 2-channel evaluation, testing of the individual channels).



The safety parameters are not stored directly on the component, but are transmitted to the input terminal via a TwinSAFE Logic-capable component when the safety application is started. This simplifies service procedures, because the component can simply be replaced. The safety-relevant parameters are transferred to the new component when the safety application is restarted.





Product Information




Special features:

  • 4 safe inputs
  • cross-circuit detection
  • 1-channel vs. 2-channel evaluation directly on the component
  • testing of the channels can be activated individually



Technical data EL1904
Connection technology 1-/2-wire
Number of inputs 4
Protocol TwinSAFE/Safety over EtherCAT
Response time typ. 4 ms (read input/write to E-bus)
Fault response time ≤ watchdog time (parameterizable)
Current consumption power contacts see documentation
Current consumption E-bus typ. 200 mA
Installation position horizontal
Safety standard DIN EN ISO 13849-1:2008 (Cat. 4, PL e) and EN 61508:2010 (SIL 3)
Weight approx. 50 g
Protection rating IP20
Ex marking ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc





Housing data EL-12-8pin
Design form compact terminal housing with signal LEDs
Material polycarbonate
Dimensions (W x H x D) 12 mm x 100 mm x 68 mm
Installation on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of double slot and key connection
Marking labeling of the BZxxx series
Wiring solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm²
Connection cross-section AWG s*: AWG28…14,
st*: AWG28…14,
f*: AWG26…16
Stripping length 8…9 mm
Current load power contacts Imax: 10 A





Product Photo

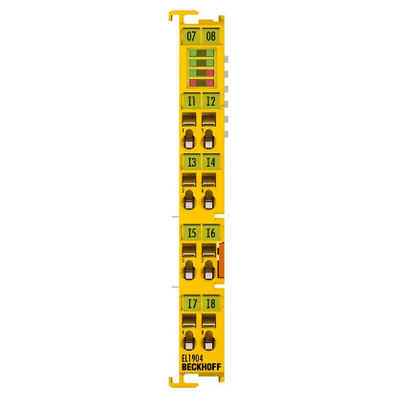

EL1904 Beckhoff  | EtherCAT Terminal, 4-channel digital input, 24 V DC, TwinSAFE 0

EL1904 Beckhoff  | EtherCAT Terminal, 4-channel digital input, 24 V DC, TwinSAFE 1
