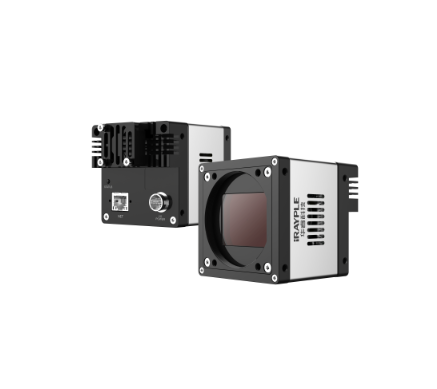

IRAYPLE AX7C10MK250 Multi-Trigger/Custom-ROI Ind-Vision-Camera High-Precision-Wide-Compat
  • Name
  • Name
  • Name
  • Name

IRAYPLE AX7C10MK250 Multi-Trigger/Custom-ROI Ind-Vision-Camera High-Precision-Wide-Compat

MOQ: 1
Price: Negotiable
Standard Packaging: 50*50*50mm
Delivery Period: 3-7
Payment Method: T/T
Supply Capacity: 1/piece in stock
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
IRAYPLE
Certification
3C
Model Number
AX7C10MG250
Function:
Connects PLC To External Devices
Transmission Medium:
Category 5 Twisted Pair
Communicationprotocol:
Modbus TCP/IP
Standard Target Plate:
100 Mm X 100 Mm
Sampling Period:
0~100s Configurable
Responsetime:
5 Ms
Storage Temperature:
-40°C~85°C
Connection Type:
Connector Plug M12 X 1 , 5-pin
Product Description
IRAYPLE AX7C10MK250 Multi-Trigger/Custom-ROI Ind-Vision-Camera High-Precision-Wide-Compat
Product Overview
The IRAYPLE AX7C10MG250 is a high-performance, network-ready uncooled infrared camera core module engineered for reliable integration into advanced industrial automation and machine vision systems. It features a Gigabit Ethernet (GigE) interface providing 1 Gbps data bandwidth and supporting transmission distances up to 100 meters for flexible system layout.
The core module delivers thermal imaging with defined resolution and good thermal sensitivity, characterized by competitive Noise Equivalent Temperature Difference (NETD). It incorporates a thermoelectric cooler (TEC) for consistent detector temperature stabilization, ensuring measurement accuracy.
Key Features & Applications
This thermal imaging core is designed for industrial applications requiring dependable, networked thermal data, including 24/7 process monitoring, automated quality inspection, and predictive maintenance systems.
  • Robust network connectivity with reliable data integrity via onboard cache
  • Powerful onboard ISP reduces host PC load
  • Integrated ISP engine including gamma correction, lookup tables, FFC, denoising, and sharpening
  • Enables accurate temperature measurement and thermal anomaly detection
  • Designed for OEM integration as smart sensor nodes for IIoT platforms
Technical Specifications
Parameter Category Specification Details
Model AX7C10MG250 / AX7C10MG250E
Series AX Series Large Area Scan Camera
Sensor Sony IMX342, Global Shutter
Resolution 31 MP (6464 × 4852)
Sensor Type 22.3 mm × 16.7 mm CMOS (APS-C size)
Color/Mono Mono
Frame Rate 3.6 fps @ 6464 × 4852 (Mono8)
Pixel Size 3.45 μm × 3.45 μm
Data Interface GigE (1000Mbps bandwidth, up to 100m transmission distance)
Lens Mount M58 × 0.75
Image Formats Mono8/10/10Packed/12/12Packed
GPIO 12-pin Hirose: 3x opto-isolated inputs, 3x opto-isolated outputs, 1x RS232 serial port
On-board Cache 256 MB (some sources specify 512 MB)
Dynamic Range 73 dB
Signal-to-Noise Ratio 40 dB
Gain 1 ~ 32X
Shutter Exposure 3 μs ~ 15 s
Power Supply DC 12V ~ 26V via 12-pin Hirose interface
Power Consumption 24V ≈ 7.86W
Dimensions 72 mm × 72 mm × 64 mm (excluding rear housing)
Weight 487 g
Operating Temperature -30℃ ~ +50℃
Storage Temperature -30℃ ~ +80℃
Compatibility GigE Vision V2.0, GenICam, CE, FCC, KC, RoHS
Key Features ROI, X/Y Flip, Binning (1×2, 2×1, 2×2), SPC, FFC, Auto Exposure/Auto Gain, Gamma Correction (0~4, LUT), User-defined configurations, Fan speed adaptive control
