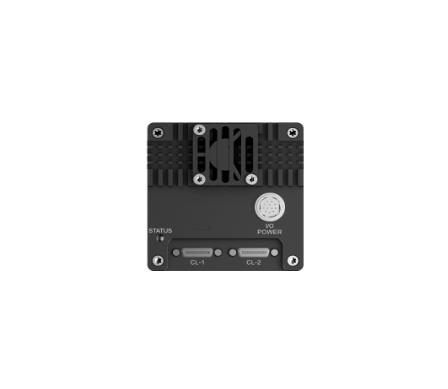

IRAYPLE AX7C10MK250 Multi-Trigger/Custom-ROI Ind-Vision-Camera High-Precision-Wide-Compat

Product Overview and Key Specifications

The IRAYPLE AX7C10MK250 is a high-performance, network-ready uncooled infrared camera core module engineered for reliable integration into industrial automation and machine vision systems. It features a standard Gigabit Ethernet (GigE) interface, providing 1 Gbps of data bandwidth and supporting cable lengths of up to 100 meters for flexible and distributed system installation. The core module is equipped with 256MB of onboard cache to ensure reliable data handling during high-throughput operations and to facilitate robust image packet retransmission. It offers versatile operational control through support for software triggering, hardware triggering, and free-running modes. A key technical feature is its comprehensive suite of on-board Image Signal Processing (ISP) functions for real-time image enhancement. The device is fully compliant with the GigE Vision protocol and GenICam standard, ensuring seamless interoperability, and carries essential international certifications including CE, UKCA, UL, KC, and RoHS for global industrial deployment.

Primary Applications and Functional Advantages

This thermal imaging core is designed for demanding applications that require reliable, networked thermal data and detailed analysis, such as 24/7 process monitoring, automated quality inspection, and predictive maintenance systems. Its main advantages are robust industrial network connectivity, reliable data integrity ensured by onboard cache, and powerful onboard image processing that reduces the computational load on the host PC. The integrated ISP engine—including functions like gamma correction, lookup tables, black level correction, brightness/contrast adjustment, flat-field correction (FFC), denoising, and sharpening—delivers calibrated, analysis-ready thermal video streams directly from the module. Functionally, it provides extensive application tuning with support for multiple output data formats, user-defined Regions of Interest (ROI), flexible pixel binning (including arbitrary scaling), image mirroring, AutoFunction features, lossless compression, and a Sequencer for automated parameter polling. This makes the AX7C10MK250 a versatile and certified solution for building intelligent, networked thermal inspection systems within smart factory environments.

Product Specifications: AX7C10MK250 / AX7C10MK250E
