NBN4-12GM40-Z0-V1 Inductive Proximity Sensor 12mm Range M12 PNP NC IP67 Factory Automation
  • Name
  • Name
  • Name

NBN4-12GM40-Z0-V1 Inductive Proximity Sensor 12mm Range M12 PNP NC IP67 Factory Automation

MOQ: 1
Price: 205$/piece
Standard Packaging: 110*60*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Details Information
Product Description
Detail Information
Place of Origin
GERMANY
Certification
3C
Model Number
NBN4-12GM40-Z0-V1
Length:
55 Mm
Power Consumption:
2.4W
Storage Temperature:
-40°C~85°C
Dimensions:
100mm X 70mm X 35mm
Operating Temperature:
-20°C To 60°C
Number Of Channels:
8
Width:
25 Mm
Highlight:

IP67 Inductive Proximity Sensor

,

12mm Inductive Proximity Sensor

,

M12 Inductive Proximity Sensor

Product Description

Design and Structure​

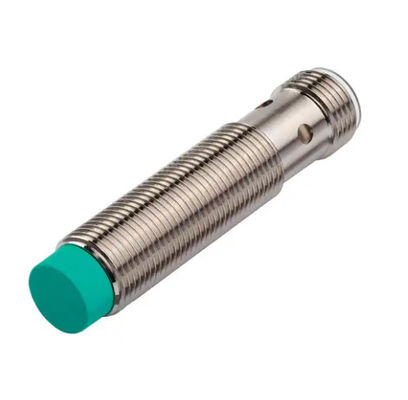

The Pepperl + Fuchs NBN4 - 12GM40 - Z0 - V1 is an inductive sensor with a compact design. Its 12 - mm diameter cylindrical housing, made of nickel - plated brass, offers durability. The 40 - mm length makes it suitable for various installation spaces. It features a non - flush installation type, allowing the PBT - made sensing face to be exposed for efficient detection. With a rated sensing distance of 4 mm, it can accurately identify metallic objects within its range. This design is perfect for applications where space is limited but reliable sensing is crucial.​

Electrical Performance​

This industrial automation product operates on an AC/DC voltage range of 10 - 30 V, providing flexibility in power sources. It has a two - wire output type with a normally open (NO) switching function. The switching frequency can reach up to 1500 Hz, enabling quick response times. Reverse polarity protection is built - in, safeguarding the sensor from incorrect voltage connections. The voltage drop is ≤ 3 V, and it can handle an operating current of 0 - 200 mA. These electrical characteristics ensure stable and consistent operation in industrial setups.​

Environmental Adaptability​

The NBN4 - 12GM40 - Z0 - V1 can function well in an ambient temperature range from - 25 °C to 70 °C (-13 °F to 158 °F). With an IP67 protection rating, it is highly resistant to dust and water immersion, making it suitable for harsh industrial environments. The connection is through a cable, facilitating easy installation. The nickel - plated brass housing not only provides mechanical strength but also some level of corrosion resistance, ensuring long - term performance in different industrial conditions.





Attribute

Details

Product Type

Inductive Sensor

Brand

Pepperl + Fuchs

Model

NBN4 - 12GM40 - Z0 - V1

Housing Design

Cylindrical, 12 mm diameter, nickel - plated brass

Housing Length

40 mm

Installation Type

Non - flush

Sensing Face Material

PBT

Rated Sensing Distance

4 mm

Operating Voltage

AC/DC 10 - 30 V

Output Type

Two - wire

Switching Function

Normally Open (NO)

Switching Frequency

Up to 1500 Hz

Protection Feature

Reverse Polarity Protection

Voltage Drop

≤ 3 V

Operating Current

0 - 200 mA

Ambient Temperature Range

- 25 °C to 70 °C (-13 °F to 158 °F)

Protection Rating

IP67

Connection Type

Cable

Tags:

PLC Ethernet Module,

Digital Output Module,

Telematic Control Module
