MOQ: | 1 |
Price: | 205$/piece |
Standard Packaging: | 110*60*60mm |
Delivery Period: | 3 day |
Payment Method: | T/T |
Supply Capacity: | 1piece in stock |
1. Advanced Safety Performance & Technical Specifications
The LEUZE PRK96M/A-3410-44 safety light curtain is a high-precision optoelectronic device designed for industrial machine guarding applications. Featuring a resolution of 14mm beam spacing and a detection range of up to 3.5 meters, this Type 4 (IEC 61496) certified system ensures reliable object/personnel detection in harsh environments. With a response time of ≤15ms and 44 vertically aligned infrared beams, it enables rapid shutdown of hazardous machinery while minimizing false triggers. The rugged aluminum housing (IP67-rated) withstands dust, moisture, and mechanical stress, making it ideal for automotive, packaging, and metalworking industries. Integrated status LEDs and M12 connectors simplify installation and diagnostics.
2. Compliance & Integration Capabilities
Certified to EN ISO 13849-1 (PL e, Cat. 4) and CE Marked per EU Machinery Directive, the PRK96M/A-3410-44 meets global safety standards for industrial automation. Its flexible configuration supports cascading up to 4 units for extended protection zones, while programmable muting functions allow safe material passage during production cycles. Compatible with LEUZE’s AS-Interface and PROFINET protocols, this safety curtain seamlessly integrates with PLC systems from Siemens, Rockwell, and Mitsubishi. The built-in OSSD (Output Signal Switching Device) outputs dual-channel safety signals (30V DC, 500mA) for fail-safe control circuit integration. Optional mounting brackets enable horizontal/vertical orientation adaptability.
3. Operational Efficiency & Maintenance Features
Engineered for minimal downtime, the PRK96M/A-3410-44 incorporates automatic contamination compensation and a teach-in function for beam alignment verification. Its energy-efficient design operates at 24V DC (±15%) with ≤5W power consumption, reducing operational costs. The diagnostic port supports LEUZE’s Configurator software for real-time performance monitoring and parameter adjustments via USB. Maintenance teams benefit from tool-free lens cleaning access and a 100,000-hour MTBF (Mean Time Between Failures) rating. Includes a 3-year warranty with optional SIL3-certified redundancy kits for mission-critical applications in pharmaceutical and robotics sectors.
Attribute | Value | Source |
---|---|---|

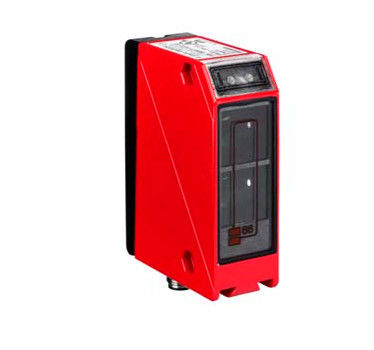

Product Type | Polarized Retro-Reflective Photoelectric Sensor | Trimantec, Alibaba |
Model | PRK 96M/A-3410-44 | All sources |
Series | Leuze 96 Series (Cubic Housing) | Trimantec |
Sensing Principle | Polarized Retro-Reflective (with Autocollimation for transparent media) | Trimantec, AutomatedPT |
Operating Range | 0.3–15 m (guaranteed); 0.1–18 m (limit) | Trimantec |
Light Source | Red LED | Trimantec, Alibaba |
Supply Voltage | 26.5–31.6 V DC (optimized for 24V systems) | Trimantec |
Switching Frequency | 1000 Hz (response time: ~1 ms) | Trimantec |
Output Type | 2 PNP transistors (light/dark switching) + AS-Interface IO | Trimantec |
Connection | M12 4-pin connector (metal housing) | Trimantec, Alibaba |
Housing Material | Metal (zinc) with glass lens cover | Trimantec, Leuze 官网 |
Protection Class | IP67 (dust/water ingress) | Trimantec, Leuze 官网 |
Ambient Temperature | -40°C to +55°C | Trimantec, Leuze 官网 |
Adjustment | 270° Multiturn Potentiometer | Trimantec |
Certifications | c UL US, IEC 60947-5-2 | Trimantec |
Application | Detection of transparent objects (glass, PET, foil), high-speed industrial | Trimantec, AutomatedPT |
Part Number | 50082067 | Alibaba, Trimantec |
Weight | 380 g (typical for 96 Series) | Leuze 官网 |
