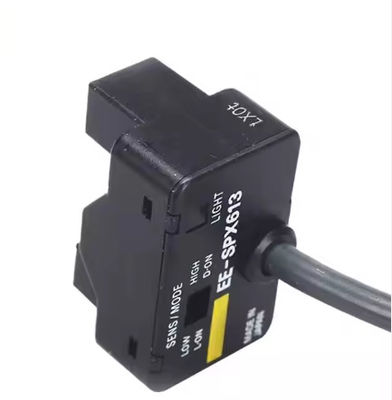

OMORN EE-SPX613 Pipe-Mounting Liquid Level Sensor | 6-13mm Detection IP50 NPN | Built-in Amplifier for Industrial Automation

OMORN EE-SPX613 Pipe-Mounting Liquid Level Sensor | 6-13mm Detection IP50 NPN | Built-in Amplifier for Industrial Automation

MOQ: 1
Price: 120$/piece
Standard Packaging: 100*100*100mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
Japan
Brand Name
OMORN
Certification
3C
Model Number
EE-SPX613
Quality:
100% Original 100% Brand
Operating Temperature:
-10°C To 60°C
Output Type:
PNP
Firmware Version:
V1.0
Rated Operating Distance:
4 Mm
Dimension:
100.0mm X 52.5mm X 80.0mm
Degree Of Protection:
IP65 / IP66 / IP67 / IP68
Product Description

1. High-Precision Through-Beam Liquid Level Sensing



The OMORN EE-SPX613 is a pipe-mounting liquid level photomicrosensor designed for reliable detection in industrial automation systems. Using a through-beam configuration, it accurately identifies liquid levels in 6–13mm diameter pipes with 1mm wall thickness, compatible with FEP or similarly transparent materials. The sensor supports both dark-on and light-on operation modes, allowing flexible activation based on liquid presence. Equipped with a 940nm infrared LED light source and built-in amplifier, it delivers stable performance in ambient light up to 3,000 lux. Technical specifications include a 12–24V DC power supply, NPN open collector output (100mA max.), and a 3m pre-wired cable for easy installation.

2. Rugged Construction for Industrial Environments



Engineered for durability, the EE-SPX613 features a polycarbonate housing with IP50 protection against dust and limited water exposure. It withstands vibrations (10–500Hz at 150m/s²) and shocks (500m/s²), ensuring reliability in harsh conditions. The sensor operates across -10°C to +55°C and includes dual LED indicators (red for output, green for power) for intuitive status monitoring. Accessories like cable ties and slip-protection tubes simplify installation, while CE and RoHS compliance ensure global compatibility. OMORN’s ISO 9001 certification guarantees quality, backed by a 2-year warranty.

3. Versatile Applications and Easy Integration



Ideal for industrial automation, the EE-SPX613 excels in liquid level monitoring for water treatment, food processing, and chemical handling. Its adjustable sensitivity selector adapts to varying pipe materials and liquid types, though high-viscosity or particle-laden fluids may require additional validation. The sensor integrates seamlessly with PLC systems via its NPN output, supporting real-time data feedback. Customization options include 1m or 5m cable lengths, enabling tailored solutions for conveyor systems, tanks, or machinery. Factory-direct pricing and technical support reduce integration costs, making it a cost-effective choice for optimizing operational efficiency.



Type

Tubemounting

Sensing method

Through-beam type

Operation mode

Dark-ON/Light-ON (selectable)

Applicable pipe

Any 6 to 13 mm diameter pipe with a wall thickness of 1 mm that is made of FEP or any other material as transparent as FEP.

Standard sensing object

Liquids in pipes (High-viscosity liquids or liquids with floating materials may not be detected.)

Light source (Peak wavelength)

GaAs infrared LED (940 nm)

Indicator

Light indicator GaP (Red LED: Peak wavelength of 700 nm)

Power supply voltage

12 to 24 VDC ±10%
ripple (p-p) 5 % max.

Current consumption

Average value: 30 mA max.
Peak: 80 mA max.

Control output

Output type

NPN open collector output

Load power supply voltage

5 to 24 VDC

Load curren

100 mA max.

Residual voltage

at 100 mA load current: 0.8 V max.
at 40 mA load current: 0.4 V max.

Illumination on the surface receiver

Incandescent light, sunlight: 3000 lx max.

Ambient temperature

Operating: -10 to 55 ℃ (with no freezing or condensation)
Storage: -25 to 65 ℃ (with no freezing or condensation)

Ambient humidity

Operating: 5 to 85 % (with no condensation)
Storage: 5 to 95 % (with no condensation)

Vibration resistance

Destruction: 10 to 500 Hz, 1.0 mm single amplitude or acceleration 150 m/s2, 3 times each in X, Y, and Z directions (11 min/sweeps)

Shock resistance

Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions

Degree of protection

IP50

Connection method

Pre-wired models

Cable length

1 m

Weight

Package: Approx. 55 g

Material

Case: Polycarbonate (PC)
Cover: Polycarbonate (PC)

Accessories

Cable tie, slip protection tube, Instruction manual
