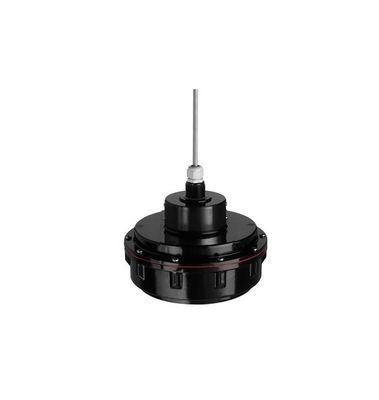

FDU93-RG1A ENDRESS+HAUSER E+H Ultrasonic Measurement Time of Flight Prosonic FDU93

FDU93-RG1A ENDRESS+HAUSER E+H Ultrasonic Measurement Time of Flight Prosonic FDU93

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Payment Method: T/T
Supply Capacity: 100PCS/WEEKS
Detail Information
Place of Origin
Switzerland
Brand Name
ENDRESS+HAUSER
Model Number
FDU93-RG1A
Place Of OriginGermany:
Switzerland
Brand Name:
ENDRESS+HAUSER
Model:
FDU93-RG1A
Product Name:
Ultrasonic Measurement
Warranty:
1 Year
Quality:
100% Original 100% Brand
Package:
Package
Application:
Industrial Automation
Highlight:

Time-of-Flight Prosonic FDU93

,

ENDRESS+HAUSER E+H Ultrasonic measurement

,

FDU93-RG1A Ultrasonic measurement

Product Description
FDU93-RG1A ENDRESS+HAUSER E+H Ultrasonic measurement Time-of-Flight Prosonic FDU93
Specification
FDU93-RG1A ENDRESS+HAUSER E+H Ultrasonic Measurement Time of Flight Prosonic FDU93 0
FDU93-RG1A ENDRESS+HAUSER E+H Ultrasonic Measurement Time of Flight Prosonic FDU93 1

Ultrasonic sensor for level and flow measurement for connection to FMU9x (measuring range up to 25m)

The FDU93 ultrasonic sensor for continuous, non-contact and maintenance-free level measurement of fluids, pastes, sludges and powdery to coarse bulk materials. But also for flow measurement in open channels and measuring weirs. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of sensors. Suited for explosion hazardous areas. Maximum measuring range in liquids 25m (85ft), solids 15m (50ft).
Sensor for continuous, non-contact level measurement of fluids and of bulk materials in silos, on belts, stockpiles and in crushers. Also for flow measurement in open channels and at weirs. Typically used in measurements in low structural heights.
* Process connection: Thread
* Temperature: -40 to +95°C (-40 to +203°F)
* Pressure: +0.7 to +3bar (+10 to +43psi)
* Maximum measuring range: Liquids 25m (85ft), solids 15m (50ft)
* Blocking distance: 0.6m (2ft)
* International explosion protection certificates

Benefits
* Integrated temperature sensor for Time-of-Flight correction. Accurate measurements are possible, even if temperature changes are present
* Suited for rough ambient conditions thanks to separate installation from the transmitter(up to 300m)
* Reduced build-up formation because of the self-cleaning effect
* Integrated automatic sensor detection for transmitters FMU90/FMU95 for simple commissioning
* Weather resistant and flood-proof (IP 68)
* Non-contact measurement method minimizes service requirements
* International Dust-Ex and Gas-Ex certificates available

Products Description
Measuring principle
Ultrasonic
Characteristic / Application
Separated version with field housing or top hat rail housing for control cabinet instrumentation, 300 m in-between sensor and transmitter
Supply / Communication
4-wire (HART, Profibus DP)
Accuracy
+/- 2 mm + 0.17% of measured distance
Ambient temperature
-40 °C ... 95 °C
(-40 °F ... 203 °F)
Process temperature
-40 °C ... 95 °C
(-40 °F ... 203 °F)
Process pressure / max. overpressure limit
0.7 bar ... 3 bar abs
(10 psi ... 43 psi)
Main wetted parts
UP (unsaturated polyester) Silicon / Al PTFE coated
