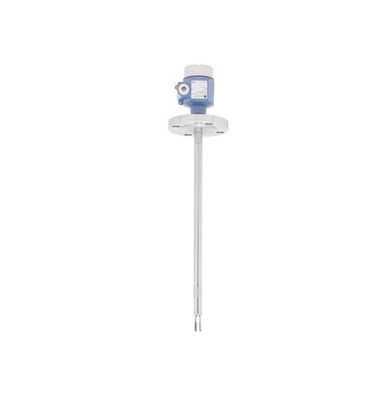

FTL51-AGR2DB1G4A ENDRESS+HAUSER E+H Vibronic Point Level Detection Liquiphant FTL51

FTL51-AGR2DB1G4A ENDRESS+HAUSER E+H Vibronic Point Level Detection Liquiphant FTL51

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Payment Method: T/T
Supply Capacity: 100PCS/WEEKS
Detail Information
Place of Origin
Switzerland
Brand Name
ENDRESS+HAUSER
Model Number
FTL51-AGR2DB1G4A
Place Of OriginGermany:
Switzerland
Brand Name:
ENDRESS+HAUSER
Model:
FTL51-AGR2DB1G4A
Product Name:
Vibronic Point Level Detection Liquiphant
Warranty:
1 Year
Quality:
100% Original 100% Brand
Package:
Package
Application:
Industrial Automation
Highlight:

Liquiphant FTL51 ENDRESS+HAUSER

,

Vibronic Point level detection Liquiphant FTL51

,

ENDRESS+HAUSER E+H Vibronic Point level detection

Product Description
FTL51-AGR2DB1G4A ENDRESS+HAUSER E+H Vibronic Point level detection Liquiphant FTL51
Specification
Point level switch with extension tube for liquids in all industries
Liquiphant FTL51 is a point level switch with extension tube for use in hazardous areas with all international certificates.
Useable in all industries. FTL51 offers functional safety SIL2/SIL3. With the second line of defense highest degree of safety and availability of the device can be guaranteed. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.
Point level switch with extension tube for all liquids.
* Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)
* Temperature: -50 to +150°C (-58 to +302°F)
* Pressure: -1 to +100bar (-14.5 to +1,450psi)
* Sensor material: 316L, Alloy
* International explosion protection certificates, overfill protection WHG, SIL
Benefits
* Use in safety systems requiring functional safety to SIL2/SIL3 in accordance with IEC 61508/IEC 61511-1
* International explosion protection certificates and overfill protection certificate (WHG)
* No calibration required, easy to start up
* No mechanically moving parts: no maintenance, no wear, long operating life.
Monitoring of fork for damage: guaranteed function
* Second line of defense to protect the environment
* Variety of standardized process connections for all applications
* Stainless steel (316L) and high-corrosion resistant sensor material (Alloy)
Products Description
Measuring principle
Vibration Liquids
Characteristic / Application
Modular housing concept
wide range of process connections
Analogue and bus interfaces
Extensive certificate range (e.g. Ex,WHG)
pipe extension up to 3m (6m option)
Specialities
Foamdetection
Detect a densitychange
second line of defense
Supply / Communication
PROFIBUS PA
19...253V AC
10...55V DC-PNP
19...253V AC or 10...55V DC
8/16mA, 11...36V DC
NAMUR
PFM
Ambient temperature
-50 °C...+70 °C
(-58 °F...+158 °F)
Process temperature
-50 °C...+150 °C
(-58 °F...+302 °F)
Process pressure / max. overpressure limit
Vacuum...100 bar
Min. density of medium
0.5g/cm³(0.4g/cm³ optional)
Main wetted parts
316L / Alloy
