MOQ: | 1set |
Price: | $10-$1000 |
Standard Packaging: | 100% original carton package |
Delivery Period: | 5-10 workday |
Payment Method: | TNT DHL FEDEX EMS UPS |
Supply Capacity: | 100set/month |

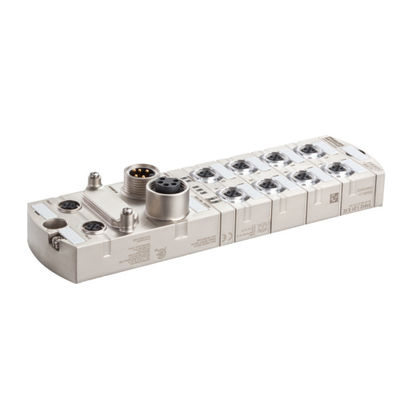

55530 Murr elektronik MVK-MPNIO DIO16 IRT 7/8" 5pin
Digital inputs/outputs
DIO16 (IRT)
Ethernet 10/100 Mbit/s; M12, D-coded
7/8", 5-pole, 2× max. 9 A
M12, 5-pole, A-coded
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
Art.No.: | 55530 |
Weight: | 0.966 kg |
Country of origin: | DE |
Electrical data | Supply
Norm operating voltage |
EN 61131-2 |
---|---|
Operating voltage US DC |
24 V |
Operating voltage UA DC |
24 V |
Total current UA max. |
9 A |
Total current US max. |
9 A |
Electrical data | Input
Overload resistant |
yes |
---|---|
Short-circuit protected |
yes |
Type input |
PNP, for 3-wire sensors or mechanical switches |
Sensor current US per input max. |
0,2 A |
Electrical data | Output
Overload resistant |
yes |
---|---|
Short-circuit protected |
yes |
Output current per pin max. |
1,6 A |
Lamp load |
10 W |
Industrial communication
Supported protocol |
PROFINET |
---|
Industrial communication | Profinet
Number of active connections (IO controller) max. |
2 |
---|---|
FSU (Fast-Start-Up) |
yes |
Fast start up time max. |
0,5 s |
IRT (network communication) |
yes |
MRP client |
yes |
PROFINET Netload Class |
III |
PROFINET addressing |
DCP |
PROFINET conformance class |
C |
PROFINET specification |
V2.3 |
Shared device/input |
yes |
Diagnostics
Actuator warning |
per channel via LED and BUS |
---|---|
Diagnostic |
No voltage, Under voltage |
Diagnostic via BUS |
per module and channel |
Diagnostic via LED |
per module and channel |
Short circuit diagnosis |
yes |
LED display |
Ethernet connection/data traffic |
Cable break |
per port |
Overload diagnosis |
yes |
Device protection | Electrical
Degree of protection (EN IEC 60529) |
IP67 |
---|
Mechanical data | Mounting data
Suitable for mounting type |
2-hole screw mounting |
---|---|
Height |
42 mm |
Width |
63 mm |
Depth |
225 mm |
Environmental characteristics | Climatic
Operating temperature min. |
-25 °C |
---|---|
Operating temperature max. |
60 °C |
Storage temperature min. |
-25 °C |
Storage temperature max. |
70 °C |
1. who are we?
We are based in Fijian, China, start from 2017,sell to Mid East(50.00%),Western Europe(25.00%),Southeast Asia(20.00%),Domestic Market(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PLC,SENSOR,HMI,TRANSMITTERS
4. why should you buy from us not from other suppliers?
Zhicheng insists on striving for excellence business philosophy. whether its industrial automation spare parts or delivery efficiency,We are committed to doing better.
