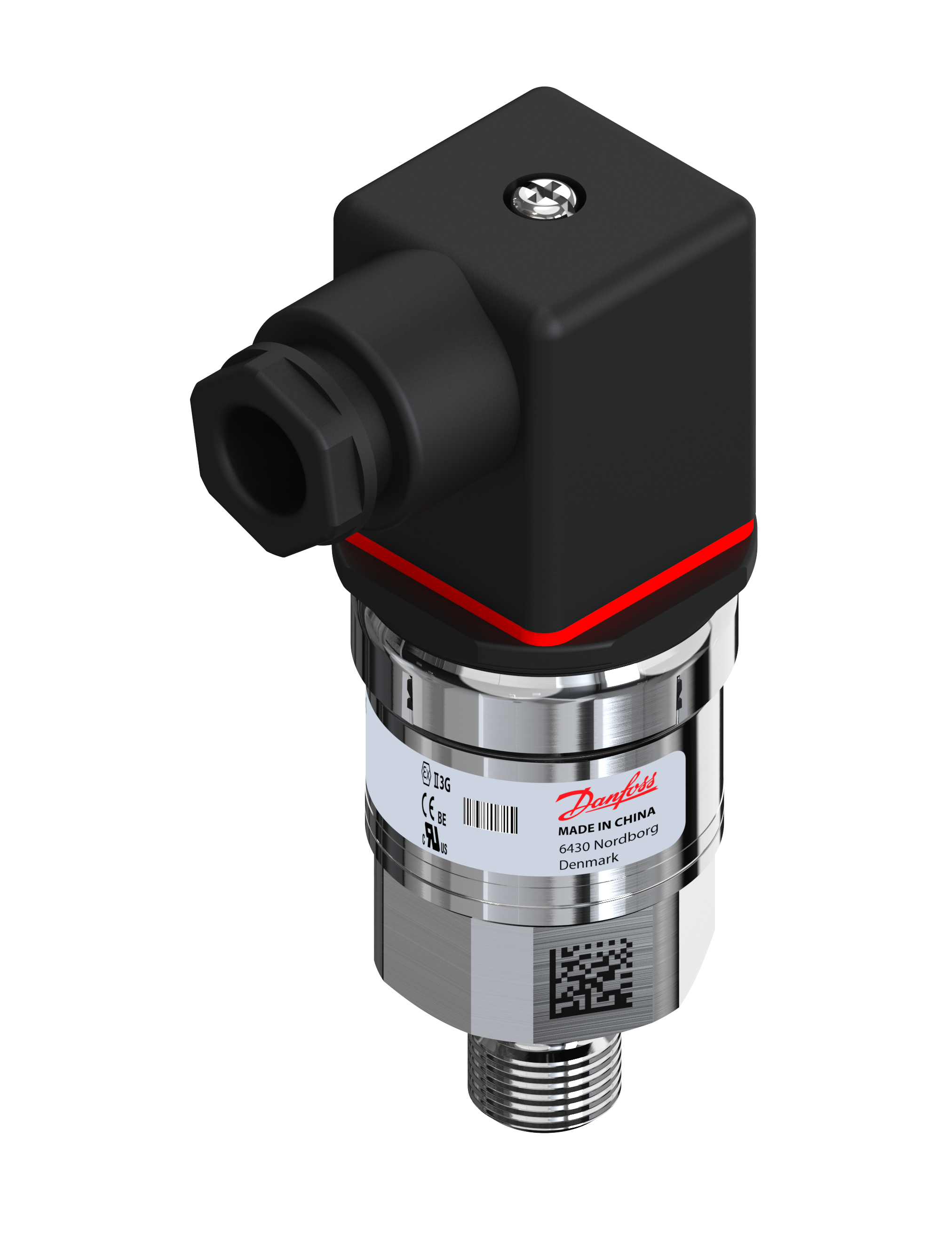

Danfoss Pressure transmitter MBS 3350 060G6227, 0.00 bar - 400.00 bar, 0.00 psi - 5800.00 psi

Danfoss Pressure transmitter MBS 3350 060G6227, 0.00 bar - 400.00 bar, 0.00 psi - 5800.00 psi

MOQ: 1set
Price: $1--$1000
Standard Packaging: 100% original package
Delivery Period: 1-10 working days
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
Denmark
Brand Name
Danfoss
Certification
EU-UK
Model Number
MBS 3350 060G6227
Brand Name:
Danfoss
Model:
MBS 3350 060G6227
Warranty:
1 Year
Product Type:
Pressure Transmitter
Shipping Weight:
0.186 Kilogram
Estimated Lead Time:
1-10 Working Days
Highlight:

MBS 3350 060G6227 Pressure transmitter

,

Danfoss Pressure transmitter 5800.00 psi

Product Description



Danfoss Pressure transmitter, MBS 3350 060G6227







Specification




Pressure reference: Sealed gauge,

Output signal: Current,

Electrical connection: Angular connector,

Pressure connection type: G,

Pressure connection size: 1/4,

Specification key: MBS 3350-3631-A6GB04-2

Danfoss Pressure transmitter MBS 3350 060G6227, 0.00 bar - 400.00 bar, 0.00 psi - 5800.00 psi 0

Danfoss Pressure transmitter MBS 3350 060G6227, 0.00 bar - 400.00 bar, 0.00 psi - 5800.00 psi 1





Gross weight 0.186 Kilogram
Net weight 0.163 Kilogram
Volume 0.371 Liter
EAN 5702428822534
+ supply Pin 1
- common Pin 2
Accuracy, max. [±FS%] 0.01
Accuracy, typical [±FS%] 0.005
Adj. zero point and span No
Ambient temperature range [°C] [max] 100 °C
Ambient temperature range [°C] [min] -40 °C
Ambient temperature range [°F] [max] 212 °F
Ambient temperature range [°F] [min] -40 °F
Approval ATEX
Approval comments ATEX Ex ec IIA T4 Gc
Autofrettage Pressure 1600 bar
China RoHS compliance Yes
Compensated temp. range [°C] [max] 100 °C
Compensated temp. range [°C] [min] 0 °C
Compensated temp. range [°F] [max] 212 °F
Compensated temp. range [°F] [min] 32 °F
EEE category 5 small equipment (any external dimension 50 cm)​
Electrical conn. Male/Female Male and Female
Electrical connection Angular connector
Electrical connection size Pg 11
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
EU RoHS compliance Yes
EU RoHS exemption clause No
Flush diaphragm No
High Clipping Level 22.4
In scope of WEEE Yes
In scope of WEEE and contain batteries No
International Article Number 5702428822534
Intrinsically safe No
Low Clipping level 3.6
Medium temperature range [°C] [max] 125 °C
Medium temperature range [°C] [min] -40 °C
Medium temperature range [°F] [max] 257 °F
Medium temperature range [°F] [min] -40 °F
Non-linearity BFSL [±FS%] 0.50%
Output signal Current
Output signal [mA] [max] 20 mA
Output signal [mA] [min] 4 mA
Overload pressure max. [bar] 1500 bar
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/4
Pressure connection standard DIN 3852-E
  ISO 1179-2 (Form E)
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [max] 400 bar
Pressure range [bar] [min] 0 bar
Pressure range [psi] [max] 5800 psi
Pressure range [psi] [min] 0 psi
Pressure reference Sealed gauge
Product group Sensors
Product Name Description Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 14 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
Response time max. [ms] 4 ms
SCIP dossier no. 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product name AKS/MBS
Specification key MBS 3350-3631-A6GB04-2
Supply voltage [V] DC [max] 32 V
Supply voltage [V] DC [max] 32 V
Supply voltage [V] DC [min] 9 V
Supply voltage [V] DC [min] 9 V
Type MBS 3350
UK RoHS compliance Yes






Ordering Information




Visuals Document Category Title Download
Danfoss Pressure transmitter MBS 3350 060G6227, 0.00 bar - 400.00 bar, 0.00 psi - 5800.00 psi 2 Photorealistic rendered drawing Pressure transmitter, Pg 9 / Pg 11, G1/4
