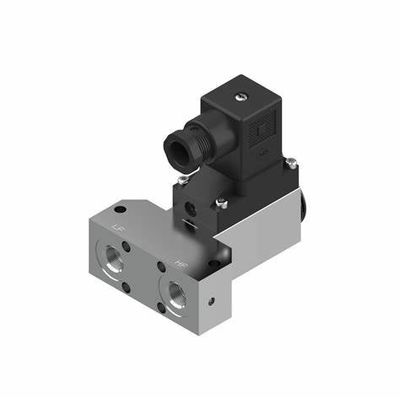

Danfoss Differential pressure switch, MBC 5180 061B129066 Reset function: Auto

Danfoss Differential pressure switch, MBC 5180 061B129066 Reset function: Auto

MOQ: 1set
Price: $1--$1000
Standard Packaging: 100% original package
Delivery Period: 1-10 working days
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
Denmark
Brand Name
Danfoss
Certification
EU-UK
Model Number
MBC 5180 061B129066
Brand Name:
Danfoss
Model:
061B129066
Warranty:
1 Year
Product Type:
Differential Pressure Switch
Shipping Weight:
0.369 Kilogram
Estimated Lead Time:
1-10 Working Days
Product Description



Danfoss Differential pressure switch, MBC 5180 061B129066



Specification




Reset function: Auto,

Pressure connection type: G,

Pressure connection type: G,

Enclosure rating IP: IP65,

Max. Working Pressure [bar]: 45.0



Danfoss Differential pressure switch, MBC 5180 061B129066 Reset function: Auto 0



Gross weight 0.369 Kilogram
Net weight 0.368 Kilogram
Volume 0.952 Liter
EAN 5702423218721
Ambient temperature range [°C] [max] 85 °C
Ambient temperature range [°C] [min] -10 °C
Ambient temperature range [°F] [max] 185 °F
Ambient temperature range [°F] [min] 14 °F
Approval ABS
CCC
CCS
CE
EAC
GL
KRS
LLC CDC EURO-TYSK
LR
LVD
NKK
RINA
RoHS
RoHS China
TYSK
UKCA
Burst pressure [bar] 90 bar
China RoHS compliance Yes
Contact function SPDT
Contact rating AC15=0.5 A, 250 V
DC13=12 W, 125 V
Diff.press.setting range [bar] [max] 5 bar
Diff.press.setting range [bar] [min] 0.3 bar
Diff.press.setting range [MPa] [max] 0.5 MPa
Diff.press.setting range [MPa] [min] 0.03 MPa
Diff.press.setting range [psi] [max] 72.5 psi
Diff.press.setting range [psi] [min] 4.3 psi
Electrical conn. Male/Female Female
Electrical connection DIN-plug
Electrical connection size Pg 11
Electrical connection standard EN 175301-803-A
Electrical spec. standard EN 60947-5
Enclosure rating IP IP65
EU RoHS compliance Out of scope
In scope of WEEE and contain batteries No
Max. test pressure [bar] Pe 68 bar
Max. test pressure [psig] 986 psig
Max. Working Pressure [bar] 45 bar
Max. Working Pressure [psig] 653 psig
Operat. range LP side [bar] Pe [max] 30 bar
Operat. range LP side [bar] Pe [min] 0 bar
Operat. range LP side [psig]Pe [max] 435 psig
Operat. range LP side [psig]Pe [min] 0 psig
Packing format Multi pack
Pressure connection size 1/4
Pressure connection standard ISO 228-1
Pressure connection type G
Pressure Male/Female Female
Product accessories Generic accessories
Product description Diff. Pressure Switch
Product group Switches and thermostats
Product Name Description Differential pressure switch
Quantity per packing format 10 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
Relay release time [s] 0 s
Reset function Auto
SCIP dossier no. c9549e84-c103-45b0-86ec-6021ce3385c8
Serviceable No
Specification key 2031-1CB04
Type MBC 5180
UK RoHS compliance Out of scope







Ordering Information






Visuals Document Category Title
Danfoss Differential pressure switch, MBC 5180 061B129066 Reset function: Auto 1 Photorealistic rendered drawing Differential pressure switch, MBC 5180_061B129066, 061B129566
Danfoss Differential pressure switch, MBC 5180 061B129066 Reset function: Auto 2 3D model Differential pressure switch, MBC 5180_061B129066, 061B129566
Danfoss Differential pressure switch, MBC 5180 061B129066 Reset function: Auto 3 3D model MBC 5180 Diff. Press.Contr
Danfoss Differential pressure switch, MBC 5180 061B129066 Reset function: Auto 4 Dimensional drawing MBC 5180 Diff.Press.Contr
