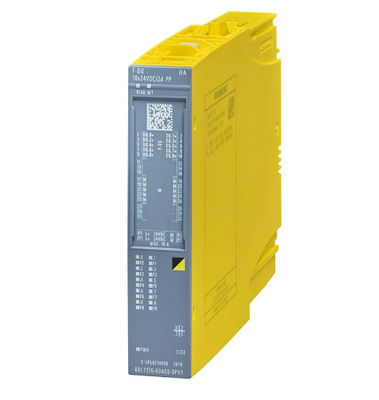

Siemens 6DL1136-6DA00-0PH1 Failsafe Digital Output Module
  • Name
  • Name

Siemens 6DL1136-6DA00-0PH1 Failsafe Digital Output Module

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Digital Output Module Safety Oriented F-DQ 10X24VDC/2A HA
Payment Method: T/T
Supply Capacity: 100PCS/MONTHS
Details Information
Product Description
Detail Information
Place of Origin
Germany
Brand Name
Siemens
Certification
CE
Model Number
6DL1136-6DA00-0PH1
Manufacturer:
Siemens
Product NO.:
6DL1136-6DA00-0PH1
Product Type Designation:
F-DQ 10X24VDC/2A PP HA
Usable Terminal Block:
TB Type H1, M1, H0 And N0
Width:
22.5 Mm
Height:
115 Mm
Depth:
138 Mm
Weight, Approx.:
230 G
Product Description

6DL1136-6DA00-0PH1 Siemens Digital Output Module, Safety-Oriented F-DQ 10X24VDC/2A HA



SIMATIC ET 200SP HA, digital output module, safety-oriented F-DQ 10X24VDC/2A HA, SIL3 (IEC 61508), up to PL E (ISO 13849-1) suitable for terminal block H1, M1, color code CC01, channel diagnostics



Product Attributes

General information
Product type designation F-DQ 10X24VDC/2A PP HA
Firmware version V1.0
    ● FW update possible Yes
Usable terminal block TB type H1, M1, H0 and N0
Color code for module-specific color identification plate CC02
Product function
    ● I&M data Yes; I&M0 to I&M3
Engineering with
    ● PCS 7 configurable/integrated from version V9.0 SP3
Operating mode
    ● DQ Yes
Redundancy
    ● Redundancy capability Yes; With TB type M1
Supply voltage
Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Input current
Current consumption (rated value) 65 mA
Current consumption, max. 130 mA
Power
Power available from the backplane bus 90 mW
Power loss 　
Power loss, typ. 5 W; Total current 5 A at rated voltage and ambient temperature
Dimensions
Width 22.5 mm
Height 115 mm
Depth 138 mm
Weights
Weight, approx. 230 g



Siemens 6DL1136-6DA00-0PH1 Failsafe Digital Output Module 0
