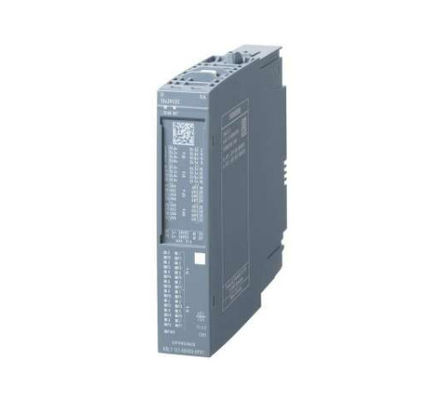

Siemens 6DL1131-6BL00-0PH1 SIMATIC ET 200SP HA, digital input module

Siemens 6DL1131-6BL00-0PH1 SIMATIC ET 200SP HA, digital input module

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Height 290 mm Digital Input Module DI 32X24VDC HA
Payment Method: T/T
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
Germany
Brand Name
Siemens
Certification
CE
Model Number
6DL1131-6BL00-0PH1
Manufacturer:
Siemens
Product NO.:
6DL1131-6BL00-0PH1
Firmware Version:
V1.0
Product Type Designation:
DI 32x24VDC HA
Usable Terminal Block:
TB Type H1 And P0
Height:
290 Mm
Depth:
210 Mm
Width:
22.5 Mm
Product Description

6DL1131-6BL00-0PH1 Siemens Digital Input Module, DI 32X24VDC HA



SIMATIC ET 200SP HA, digital input module, DI 32X24VDC HA, suitable for terminal block, H1, P0, color code CC00, channel diagnostics



Product Attributes

General information
Product type designation DI 32x24VDC HA
Firmware version V1.0
    ● FW update possible Yes
Usable terminal block TB type H1 and P0
Color code for module-specific color identification plate CC00
Product function
    ● I&M data Yes; I&M0 to I&M3
Engineering with
    ● STEP 7 TIA Portal configurable/integrated                 from version V16
    ● STEP 7 configurable/integrated from version V5.6
    ● PCS 7 configurable/integrated from version V9.0
    ● PCS neo can be configured/integrated from             version V3.0
    ● PROFINET from GSD version/GSD revision GSDML V2.3
Supply voltage
Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Input current
Current consumption (rated value) 11.5 mA
Current consumption, max. 15 mA
Encoder supply
Number of outputs 32; When terminal block with encoder supply is used (type P0)
Output voltage, min. 19.2 V
Short-circuit protection Yes; When using TB type P0
Power loss
Power loss, typ. 1.6 W; Max. 2.8 W (all inputs "1")
Dimensions
Width 22.5 mm
Height 115 mm
Depth 138 mm
Weights
Weight, approx. 150 g



Siemens 6DL1131-6BL00-0PH1 SIMATIC ET 200SP HA, digital input module 0
