Hokuyo DMJ-HB1-Z01 Parallel Data Device With Integral Nonvolatile Memory

Products

Foxboro DCS System

Ms. Andy

cocohonghuxin@gmail.com

86-0592-5636807

+8618020763272

Contact Now

Hokuyo DMJ-HB1-Z01 Parallel Data Device With Integral Nonvolatile Memory

MOQ:	1
Price:	Negotiate
Standard Packaging:	Carton
Delivery Period:	Negotiate
Payment Method:	T/T, L/C
Supply Capacity:	100PCS/MONTHS

Details Information

Product Description

Detail Information

Place of Origin

Japan

Brand Name

Hokuyo

Model Number

DMJ-HB1-Z01

Condition:

New And Original

Manufacturer:

Hokuyo

Product No:

DMJ-HB1-Z01

Direction:

Side On

Model Type:

8 Bit

Directional Angle:

Weight:

Head: Approx. 50g, Connector: Approx. 70g

Transmission Method:

Half Duplex Two-way Transmission

Highlight:

Hokuyo DMJ-HB1-Z01

Hokuyo DMJ-HB1-Z01 Parallel Data Device

Integral Nonvolatile Memory Parallel Data Device

Product Description

Hokuyo DMJ-HB1-Z01 Parallel Data Device With Integral Nonvolatile Memory

Overview

An 8 BIT parallel data transmission system from Hokuyo with integral nonvolatile memory. The opto sensor is contained in a housing with RJ11 connector, and the memory module is contained within a 25 pin D submodule, also with an RJ11 connector. The 2 elements communicate via RS485 through an RJ11 cable up to 200m in length.

Operation Benefits
• Range - 1m
• Head On/Side On - Side On
• Communication - Half duplex two-way transmission system
• Weight - head: Approx. 50g, connector: Approx. 70g

Technical Information
• Technology - Infrared Data Transmission
• Range - 1m

Product Details

• Technology - Data Transmission
• Range - 1m
• Direction - Side on
• Directional Angle (full angle) - 30º
• Model Type - 8 bit
• Transmission method - Half duplex two-way transmission
• Transmission time - 40ms
• Modulation Method - Pulse modulation
• Detection Method - Parity check
• Power Source - 24VDC
• Current Consumption - 100mA or less
• Input - Contact or open-collector, ON current 2.5mA or more, OFF current 1mA or less
• Output - NPN open-collector output (30VDC or less, residual voltage 1.8V or less)
• Connection - Modular jack - 4-core cable, RS-485 & power
• Ambient Illuminance - 4,000lx or less
• Ambient Temperature/humidity - -10ºC to +50ºC, 85% RH or less (Without dew, frost)
• Vibration Resistance - Double amplitude 1.5mm 10 to 30Hz each 2 hour in X, Y and Z directions
• Impact Resistance - 500 m/s2, each 10 time in X, Y & Z directions
• Protective Structure - IP40 (IEC Standard)
• Case Material - Polycarbonate
• Weight - head: Approx. 50g, connector: Approx. 70g

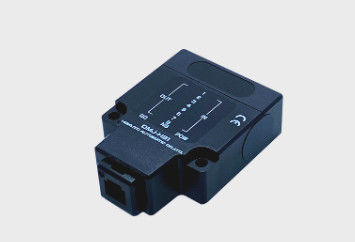

Hokuyo DMJ-HB1-Z01 Parallel Data Device With Integral Nonvolatile Memory 0
