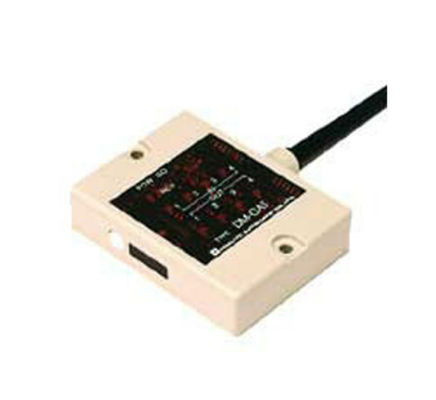

Hokuyo BRC-G2AR Fa Optical Remote Control System

MOQ:	1
Price:	Negotiate
Standard Packaging:	Carton
Delivery Period:	Negotiate
Fa Optical Remote Control System 4 Points, Head-On Type
Payment Method:	T/T, L/C
Supply Capacity:	100PCS/MONTHS

Details Information

Product Description

Detail Information

Place of Origin

Japan

Brand Name

Hokuyo

Model Number

BRC-G2AR

Condition:

New And Original

Manufacturer:

Hokuyo

Product No:

BRC-G2AR

Current Consumption:

50mA Or Less

Reception Element:

Photo-diode

Ambient Temperature:

-10 To +50℃

Ambient Humidity:

45 To 85%RH

Protective Structure:

IP66(IEC Standard)

Product Description

Hokuyo BRC-G2AR Fa Optical Remote Control System

Overview

High Reliability And Resistance Against Disturbance Noise
● Handy transmitter and thin, compac t- sized receiver on the machine side will meet to various demands of remote control system with high reliable data transmission.
●Able to transmit signal to one specific receiver among others by corresponding code(F number code) between transmitter and receiver. This makes it possible to use several receivers in one trans-mitter system.

Specifications

Type	4 points, head-on type
Model No.	BRC-G2AR
Power source	24VDC(+20%, -10%, ripple 10% or less)
Current consumption	50mA or less
Reception element	Photo-diode
Directional angle	±45°for right/left direction, 10°for upward, 40°for downward
Reception method	FSK modulation, output is effective when reverse code corresponds
F number registration	Set by transmitter
Output	Data: 4 points, strobe: 1 point Photo-coupler isolation, open-collector
Output holding time	100msec or more
Display	Red LED: Data output, light-reception, F number write-in, power
Connection	Cable with connector(2m long)
Ambient illuminance	10,000lux or less(Fluorescent lamp, mercury lamp)
Ambient temperature	-10 to +50℃
Ambient humidity	45 to 85%RH
Protective structure	IP66(IEC standard)
Case	ABS resin(Handling part: Polyester film)
Weight	Approx. 240g(including 2m cable)

Hokuyo BRC-G2AR Fa Optical Remote Control System 0
