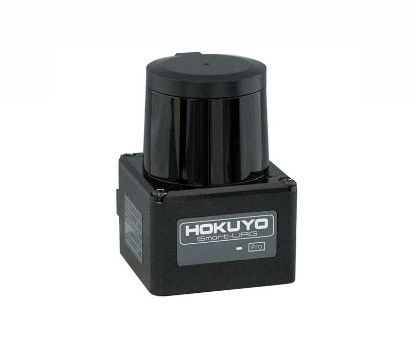

Hokuyo UST-30LX Scanning Laser Range Finde Synchronous Output 1 Point

Hokuyo UST-30LX Scanning Laser Range Finde Synchronous Output 1 Point

MOQ: 1
Price: Negotiate
Standard Packaging: Carton
Delivery Period: Negotiate
Payment Method: T/T, L/C
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
Japan
Brand Name
Hokuyo
Model Number
UST-30LX
Condition:
New And Original
Manufacturer:
Hokuyo
Product No:
UST-30LX
Field Of View:
270°
Resolution:
0.25°
Accuracy:
±40mm
Supply Current:
150mA Or Less
Scan Speed:
40Hz (25ms)
Product Description

Hokuyo UST-30LX Scanning Laser Range Finde

Overview
The UST-30LX from Hokuyo is an exceptionally well thought out and designed LiDAR introduced to the market in December 2020.
The device is extremely compact with a 50 x 50 x 70mm housing, and provides distance & intensity data at 30m with a 270º field of view and an impressive scan speed of 40Hz (25ms).
Additionally the device can be used in outdoor applications. It has an IP67 rating and also offers multi echo technology (up to 3 echos) and all data is provided using Ethernet 100 Base/TX connection.
Applications are endless for this powerful device, but include UAV, autonomous outdoor AMR & Agricultural vehicles & geomapping applications.

Features
• Range - 30m
• Field of View - 270°
• Resolution - 0.25°
• Scan Speed - 40Hz (25ms)
• Multi Echo - Yes - 3 echoes
• Type (2D/3D/RADAR) - 2D
• Supply current - 150mA or less (during start up 450mA is necessary)
• Output - Synchronous Output 1 point
• Weight - Approx. 130g (excluding cable)
• Accuracy - ±40mm
• Operating Temperature Range - -30ºC to 50ºC Less than 85% RH (Without dew, frost)
• Detection range - 0.05m to 30m (white Kent sheet) Max. 60m
• Detection range at 10% reflectivity - 0.05m to 12m (diffuse reflectance 10% )
• Repeated accuracy - Standard Deviation σ < 20mm
• IP Rating - IP67
• Connections - Power, I/O: 1.0m cable; Ethernet: 0.3m cable
