Hokuyo UST-20LX Scanning Laser Rangefinder Ethernet 100 BASE-TX

MOQ:	1
Price:	Negotiate
Standard Packaging:	Carton
Delivery Period:	Negotiate
Payment Method:	T/T, L/C
Supply Capacity:	100PCS/MONTHS

Details Information

Product Description

Detail Information

Place of Origin

Japan

Brand Name

Hokuyo

Model Number

UST-20LX

Condition:

New And Original

Manufacturer:

Hokuyo

Product No:

UST-20LX

Angular Resolution:

0.25° (360°/1,400 Steps)

Communication:

Ethernet 100 BASE-TX

Power Source:

12V Or 24VDC

Weight:

Size (W X D X H) Mm:

50 X 50 X 70

Product Description

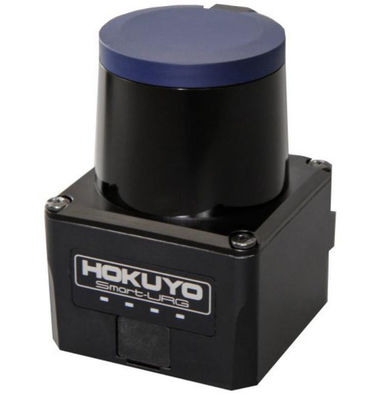

Hokuyo Ust-20lx Scanning Laser Rangefinder

Overview
The Hokuyo UST-20LX LiDAR sensor is built for robotic intelligence.
It weighs a mere 130g, making it the smallest of its kind and well-suited for airborne devices like drones and aerial vehicles. The sensor is also suited for ground vehicles, as it’s built with a fast response time (25msec) and wide detection angle (270º) to perform well in fast-moving environments. In fact, even airborne robotic devices can detect the size, position, and moving direction of oncoming obstacles with the UST-20LX.
Equipped with an Ethernet interface, it can obtain high-speed, accurate measurement data in a 270° field of view up to 20 meters. Due to its low power consumption, this scanner is suitable for battery-operated platforms.
All necessary wiring/cabling is included. Please refer to the technical documentation below for wiring instructions. Note: Reversing the power polarity will damage the sensor!

Features
• The smallest and the lightest of its kind, 130g (excluding cable)
• Fast response 25msec
• High angular resolution 0.25°
• Resolution - 0.125°
• Scan Speed - 40Hz (25ms)
• Multi Echo - No
• Type (2D/3D/RADAR) - 2D
• Supply current - 150mA or less (during start up 450mA is necessary)
• Output - Synchronous Pulse Output, photo coupler open collector output 30VDC 50mA Max Normally on
• Input - IP reset input, photo-coupler input (current 4mA at ON)
• Accuracy - ±40mm
• Operating Temperature Range - -10ºC to 50ºC Less than 85% RH (Without dew, frost)
• Wide detection angle 270°
• Mid-detection range 20m
• Detection range at 10% reflectivity
• Detection Range - 0.06m to 10m (White Kent Sheet) Max.30m
• Supply voltage - 12VDC / 24VDC (Operation range 10 to 30V ripple within 10%)
• Repeated accuracy - Standard Deviation σ < 30mm
• IP Rating - IP65
• Connections - Power source, I/O cable: 1m flying lead
• Light source - H01: Laser semiconductor (905nm)
• Laser class 1
• Laser spot size H02: 60mm in 10m (round diameter)
• H02: Laser semiconductor (830nm)

Characteristics

LIGHT SOURCE	Semiconductor laser diode (FDA approval, Laser safety class 1)
SCANNING RANGE	0.06 - 20m, 270°
MEASURING ACCURACY	±40mm
ANGULAR RESOLUTION	0.25° (360°/1,400 steps)
SCANNING FREQUENCY	40Hz (2,400rpm)
MULTI ECHO FUNCTION	N/A
COMMUNICATION PROTOCOL	SCIP 2.2
COMMUNICATION	Ethernet 100 BASE-TX
DI/0 INTERFACE	Scanner synchronous and Failure output
POWER SOURCE	12V or 24VDC
POWER CONSUMPTION	0.15A or less (on 24VDC)
AMBIENT ILLUMINANCE	Less than 15,000 lx
AMBIENT ILLUMINANCE	Avoid direct sunlight as it may cause sensor malfunction.
PROTECTIVE STRUCTURE	IP65
WEIGHT	130g
SIZE (W X D X H) MM	50 x 50 x 70

Hokuyo UST-20LX Scanning Laser Rangefinder Ethernet 100 BASE-TX 0
Related Product Recommendation:

UST-05LX	DMS-HB1-Z09	BWF-11A
UST-10LX	DMS-HB1-Z40	BWF-11B
UST-20LX	DMS-HB1-Z06	PEY-155C
UST-30LX	DMS-GB1-Z28	DMS-GB1-P
UST-05LN	DMJ-CN4-Z01	DMS-HB1-P
UAM-05LP-T301	DMJ-HB1-Z01	DML-HB1
DMS-HB1-V	EWF-11A	DMS-HA2-P
DMS-GB1-V	EWF-11B	UAM-W002
DMS-HB2-V	BRC-G24T	DMG-HB1-Z09

Tags:
Hokuyo Laser Distance Sensor,

Hokuyo LiDAR / Obstacle Detection,

Hokuyo Optical Data Transmission

Recommended Products

Hokuyo BRC-G2AR Fa Optical Remote Control System

Contact Now

Hokuyo BWF-11A Serial Type Optical Data Transmission Device Long Distance Type

Contact Now

Hokuyo BWF-11B Optical Data Transmission Device

Contact Now

Hokuyo DMS-GB1-P Infrared Data Transmission

Contact Now

Hokuyo DMS-HB1-P Infrared Data Transmission PNP Open Collector

Contact Now

Hokuyo Optical Remote Control System Brc-G24t Fa Optical Remote Control System

Contact Now

Hokuyo Optical Data Transmission Device Dms-Ha2-P Optical Data Transmission Device

Contact Now

Hokuyo Uam-W002 Spare Optical Head For Uam-05lp-T301/C

Contact Now

Hokuyo Dmg-Hb1-Z09 Hokuyo Optical Data Transmission Device

Contact Now

Hokuyo DMJ-HB1-Z01 Parallel Data Device With Integral Nonvolatile Memory

Contact Now

Hokuyo DMJ-CN4-Z01 Parallel Data Device With Integral Nonvolatile Memory

Contact Now
