Hokuyo UST-05LX Scanning Laser Rangefinder Scanner synchronous and Failure output
  • Name
  • Name

Hokuyo UST-05LX Scanning Laser Rangefinder Scanner synchronous and Failure output

MOQ: 1
Price: Negotiate
Standard Packaging: Carton
Delivery Period: Negotiate
Payment Method: T/T, L/C
Supply Capacity: 100PCS/MONTHS
Details Information
Product Description
Detail Information
Place of Origin
Japan
Brand Name
Hokuyo
Model Number
UST-05LX
Condition:
New And Original
Manufacturer:
Hokuyo
Product No:
UST-05LX
Scanning Range:
0.06 - 5m, 270°
Measuring Accuracy:
±40mm
Angular Resolution:
0.25° (360°/1,400 Steps)
Scanning Speed:
40Hz (2,400rpm)
Power Source:
12V Or 24VDC
Product Description

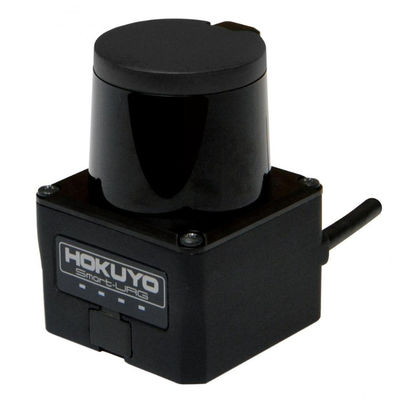

Hokuyo UST-05LX Scanning Laser Rangefinder

The UST-05LX is the most compact and lightweight distance scanning Rangefinder of its kind. The device is W50×D50×H70mm and weighs only 130g. With a wide detection range of 270º and 40Hz response time, the UST-05LX detects size, position and the moving direction of nearby or oncoming objects up to 5 meters away with extreme accuracy. Most commonly, this scanner is found in interactive media systems and autonomous robotics like self-driving vehicles or other applications that warrant optoelectronics to decipher the surrounding environments and output optical data. Purchase your UST-05LX today and discover the future of fast-response distance data output.



Features

• The smallest and the lightest of its kind, W50×D50×H70mm
• It is possible to detect size, position and the moving direction of objects.
• Detection range 5m
• Wide detection angle 270°
• Fast response 25msec
• High angular resolution 0.25°



Characteristics

Light Source Semiconductor laser diode (FDA approval, Laser safety class 1)
Scanning Range 0.06 - 5m, 270°
Measuring Accuracy ±40mm
Angular Resolution 0.25° (360°/1,400 steps)
Scanning Speed 40Hz (2,400rpm)
Multi Echo Function N/A
Communication Protocol SCIP 2.2
Communication Ethernet 100 BASE-TX
DI/0 Interface Scanner synchronous and Failure output
Power Source 12V or 24VDC
Power Consumption 0.15A or less (on 24VDC)
Ambient Illumanace 15,000 lx or less
Avoid direct sunlight as it may cause sensor malfunction.
Protective Structure IP65
Weight 130g
Size (W X D X H) mm 50 x 50 x 70



Hokuyo UST-05LX Scanning Laser Rangefinder Scanner synchronous and Failure output 0



Related Product Recommendation:

UST-05LX DMS-HB1-Z09 BWF-11A
UST-10LX DMS-HB1-Z40 BWF-11B
UST-20LX DMS-HB1-Z06 PEY-155C
UST-30LX DMS-GB1-Z28 DMS-GB1-P
UST-05LN DMJ-CN4-Z01 DMS-HB1-P
UAM-05LP-T301 DMJ-HB1-Z01 DML-HB1
DMS-HB1-V EWF-11A DMS-HA2-P
DMS-GB1-V EWF-11B UAM-W002
DMS-HB2-V BRC-G24T DMG-HB1-Z09
