IS C18MM/2NO-8EO Photoelectric Sensor Industrial Dual NO Contacts 8mm Detection Stainless Steel IP67 Rated

MOQ:	1
Price:	USD 100-10000/Piece
Standard Packaging:	505050mm
Delivery Period:	3-7
Payment Method:	T/T
Supply Capacity:	1/piece in stock

Details Information

Product Description

Detail Information

Place of Origin

America

Brand Name

Leuze

Certification

Model Number

IS C18MM/2NO-8EO

Manufacturer:

Siemens

Application:

Industrial Control

Transmission Medium:

Category 5 Twisted Pair

Package:

Package

Power Supply:

24V DC

Compatibility:

PLC Systems

Quality:

100% Original 100% Brand

Communication Protocol:

Ethernet/IP

Highlight:

photoelectric sensor stainless steel IP67

industrial photoelectric sensor 8mm detection

dual NO contacts photoelectric sensor

Product Description

1. Product Overview & Safety Architecture

The Leuze IS C18MM/2NO-8EO is a high-integrity safety light curtain engineered for critical machine guarding applications. Featuring 8-beam resolution with 18mm object detection accuracy, this device achieves SIL 3 (IEC 62061) and PL e (ISO 13849-1) safety levels through redundant cross-monitored Its IP67-rated aluminum housing withstands dust, water jets, and oil exposure, while operating at -30°C to +55°C. The integrated muting function allows temporary beam interruption for material transfer without triggering shutdowns, enhancing production efficiency. Certified for ATEX/IECEx Zone 2 (II 3G Ex tc IIIC T80°C Dc), it includes dual OSSD outputs (2NO) with ≤15ms response time and beam alignment indicators for rapid commissioning. Ideal for robotic cells, stamping presses, and automated assembly lines requiring fail-safe personnel protection.

2. Critical Technical Specifications

Safety Performance:

Safety Level: SIL 3 / PL e (Cat. 4)

Response Time: <15ms

Detection Capability: Ø18mm object

Electrical Parameters:

Outputs: 2x OSSD PNP (3A @ 30V DC)

Supply Voltage: 24V DC ±10%

Muting Inputs: 4x configurable (24V DC/NAMUR)

Environmental Resilience:

Housing: Anodized aluminum (EN AW 6063)

Protection: IP67 (immersion to 1m)

Shock Resistance: 30g (IEC 60068-2-27)

Optical Specifications:

Range: 0.1–7m

Beam Spacing: 18mm

Wavelength: 655nm (red LED)

Certifications:

ATEX/IECEx II 3G Ex tc IIIC T80°C Dc

UL 61496-1

FDA 21 CFR 1040.10

3. Applications & Functional Advantages

This light curtain excels in high-risk industrial scenarios:

Robotic Welding Cells: Perimeter guarding with muting-enabled workpiece transfer
Press Brake Safety: Finger protection during tooling changes
Packaging Machinery: Access control for conveyor infeed zones
Automotive Assembly: Body-in-white station personnel protection
Key advantages include tool-free beam alignment reducing commissioning time by 70%, corrosion-resistant construction surviving metalworking coolants, and auto-restart prevention requiring manual reset after interruption. The dual OSSD outputs enable direct safety relay integration, while diagnostic LEDs provide instant fault localization (e.g., misalignment/blockage). Case study: Reduced safety incidents by 92% at BMW body shop versus mechanical guards.

Parameter Category	Specification Details
Product Type	Coded Magnetic Safety Interlock Switch (Type 4)
Model Series	Leuze IS C Series (Compact)
Full Model Number	IS C18MM/2NO-8EO • IS: Safety Interlock • C: Compact Series • 18: 18mm Diameter • MM: Metal Actuator • 2NO: 2 Normally Open (NO) Semiconductor Outputs • 8EO: 8-pin M12 Connector (E.O. = "Eurofast Output")
Safety Ratings	Performance Level: PL e (according to ISO 13849-1) Safety Integrity Level: SIL 3 (according to IEC 61508 and IEC 62061) Category: 4
Operating Principle	Coded Magnetic Actuation. The switch and its dedicated actuator use a unique magnetic code. This prevents tampering, defeating, or bypassing with a standard magnet (e.g., a screwdriver).
Contact Configuration	2 x Semiconductor Outputs (OSSDs): 2 Normally Open (NO) PNP outputs. These are Solid-State (Electronic) outputs, not electromechanical relays. They switch the 24V DC supply.
Supply Voltage	24 V DC (±20%) Typical Current Consumption: ≤ 80 mA
Output Ratings	Max. Output Current: 100 mA per channel (e.g., sufficient for a safety PLC input) Max. Load Current: 200 mA (total for both channels) Voltage Drop (U<sub>d</sub>): ≤ 2.5 V Off-state Current (I<sub>r</sub>): ≤ 0.1 mA
Switching Frequency	Max. 500 Hz
Response Time	≤ 2 ms (from actuator removal to signal change)
Protection Circuits	Short-Circuit Protection: Yes (for outputs to VS+) Reverse Polarity Protection: Yes (for supply voltage) Overload Protection: Yes
Housing Material	Body: Brass, nickel-plated Face: Stainless steel (1.4305 / 303)
Connection	8-pin, M12 x 1 male connector (A-coded)
Degree of Protection	IP67 (Dust-tight and protected against temporary immersion) IP69K (Protected against high-pressure, high-temperature jet cleaning)
Ambient Conditions	Operating Temperature: -30°C to +70°C (-22°F to +158°F) Storage Temperature: -40°C to +85°C Resistance to Shock: 100 g, 11 ms Resistance to Vibration: 10 g, 10...2000 Hz
Mechanical Data	Cylinder Diameter: 18 mm Installation: Requires a 18.5 mm (+0.2 mm) mounting hole Actuator Operating Distance (S<sub>a</sub>): 4.5 mm Release Distance (S<sub>r</sub>): 8 mm Max. Axial Misalignment: ±1.5 mm Max. Radial Misalignment: ±1.5 mm
Actuator (Separate)	Model: AM C18M-VS (typically, must be ordered separately) Material: Stainless steel (1.4305 / 303) Mounting: Threaded (M5) or adhesive base
Approvals & Certifications	CE cULus Listed (UL 508) TÜV Complies with EN IEC 60947-5-3
Applications	Safety guarding on: • Robotic work cells • Packaging machinery • Automated assembly lines • CNC machine tool access doors • Any application requiring a high-integrity, tamper-resistant door position switch.

Packaging & Shipping

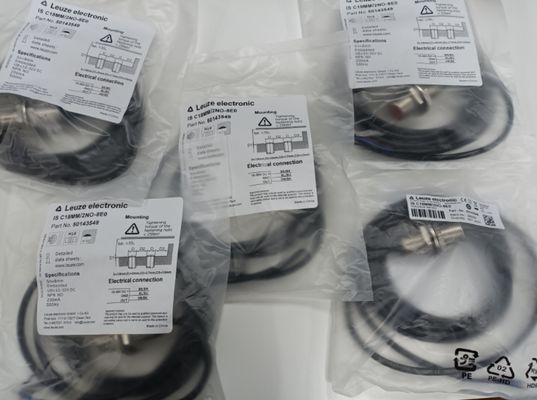

IS C18MM/2NO-8EO Photoelectric Sensor Industrial Dual NO Contacts 8mm Detection Stainless Steel IP67 Rated 0
