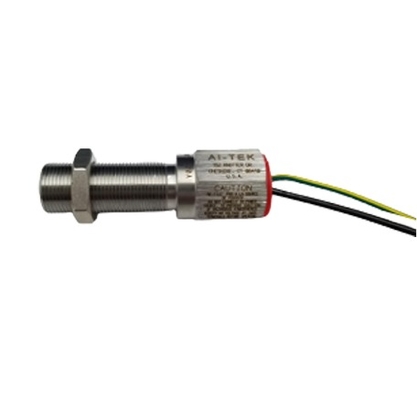

70085-1010-081 - Magnetoelectric Speed Sensor - 10V DC IP67 Stainless Industrial Probe

1. Explosion-Proof Speed Monitoring Solution​

The AI-Tek 70085-1010-081 is an intrinsically safe speed sensor engineered for critical rotational monitoring in hazardous industrial environments. Featuring a ​magnetic sensing principle​ with ​10mm detection range (1010 suffix)​, this device generates digital pulses proportional to ferrous gear teeth or notch passage with ​​±0.1% accuracy. Its ​stainless steel housing (316L)​​ achieves ​ATEX/IECEx Zone 0/1 certification​ and ​IP68 protection​ against dust, moisture, and temporary submersion (1m depth). The "081" designation denotes an ​M12×1 connector​ with ​PUR cable. Operating across ​​-40°C to +100°C, it outputs ​NAMUR-compliant signals​ (IEC 60947-5-6) for direct safety system integration. Hermetic sealing prevents gas ingress in explosive atmospheres, while mineral-insulated construction withstands ​150°C surface temperatures. Designed for turbines, compressors, and conveyors in oil/gas, mining, and chemical processing, it provides reliable speed feedback where combustible gases/dusts demand rigorous safety standards.

​2. Critical Technical Specifications​

• ​Sensing Performance:
  Target: Ferrous gear teeth (≥10mm module)
  Sensing Distance: 10mm ±0.5mm
  Frequency Range: 0–10kHz
  Accuracy: ±0.1% of reading
• ​Electrical:
  Voltage: 8-30V DC (loop-powered)
  Output: NAMUR (2-4mA current loop)
  Connector: M12×1 4-pin A-coded
• ​Environmental:
  IP68 (IEC 60529)
  Temperature: -40°C to +100°C
  Shock Resistance: 100g (IEC 60068-2-27)
• ​Hazardous Area:
  ATEX Ex ia IIC T4 Ga
  IECEx Ex ia IIC T4 Ga
• ​Mechanical:
  Housing: SS316L (EN 1.4404)
  Cable: PUR 2m (oil-resistant)
  Mounting: M18×1.5 threaded

​3. Hazardous Environment Applications​

This sensor serves critical speed monitoring roles:

• ​Offshore Gas Compressors: Shaft speed monitoring in Zone 1 methane atmospheres
• ​Mining Conveyors: Speed verification in combustible dust (Zone 21)
• ​Refinery Turbines: Overspeed protection per API 670 Annex H
• ​Chemical Reactors: Agitator speed control in Zone 0 H₂S environments
• ​Grain Elevators: Conveyor speed interlocks in ATEX Zone 22
• ​Marine Engine Rooms: Propulsion shaft RPM monitoring
• ​Petroleum Storage: Pump speed safety cutoffs
• ​Explosive Manufacturing: Mixer speed verification
  Its Ex ia certification ensures safe operation in continuously explosive atmospheres where standard sensors pose ignition risks, while IP68 rating maintains functionality in washdown areas and temporary submersion scenarios.

​4. Functional Advantages​

• ​Hazardous Area Safety:
  Intrinsic safety barriers limit energy to <0.03W
  Hermetic seals prevent explosive gas ingress
• ​Signal Reliability:
  NAMUR output enables broken wire detection
  ±1μs pulse timing accuracy
• ​Environmental Durability:
  Resists oils, solvents, and UV degradation
  500hr salt spray resistance (ISO 9227)
• ​Diagnostic Intelligence:
  Dual-color LED indicates power/signal status
  Short-circuit/overload protection
• ​Installation Flexibility:
  360° adjustable sensing head
  ±3mm lateral tolerance alignment
• ​Compliance Efficiency:
  SIL 2 capable per IEC 61508
  Pre-certified for IECEx/ATEX documentation

​5. Speed Sensing Operation​

​Magnetic Sensing Sequence:

1. ​Target Detection:
   • Gear tooth approaches within 10mm → magnetic flux change
2. ​Signal Generation:
   • Hall-effect sensor triggers Schmitt-trigger circuit
   • Pulse width: 50% duty cycle ±5%
3. ​NAMUR Output:
   • Current swing: 2mA (no target) → 4mA (target detected)
   • Open-circuit detection: <1.2mA or >6mA
4. ​Fault Diagnostics:
   • ​Solid Green LED: Power applied
   • ​Flashing Green: Signal detected
   • ​Solid Red: Fault condition
   • ​Flashing Red: Configuration error

​Safety Architecture:

• Galvanic isolation >1.5kV AC
• Output current limited to <8mA
• Automatic shutdown on short circuit
