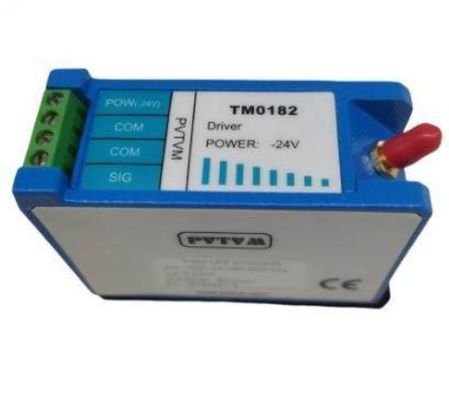

TM0182-A90-B00-C00 - Eddy Current Vibration Probe - 90mV/mm/s Wide-Temp IP67 Industrial Sensor

1. Ethernet-Enabled Vibration Monitoring Solution​

The ProvibTech TM0182-A90-B00-C00 is an advanced vibration transmitter engineered for Industry 4.0 predictive maintenance systems. Featuring ​Modbus TCP/IP output (A90 designation)​​ and an ​integrated IEPE accelerometer (B00 suffix)​, this device delivers velocity RMS measurements (0-25mm/s) with ​​±0.8% accuracy​ across a ​10Hz–2kHz frequency range. Its ​316 stainless steel housing​ provides ​IP68/IP69K protection​ against dust, high-pressure washdowns (100 bar @ 80°C), and temporary submersion (3m depth). The "C00" suffix denotes ​standard frequency weighting​ without custom filtering. Operating across ​​-40°C to +85°C​ with ​ATEX/IECEx Zone 22 certification, it enables real-time vibration monitoring for critical assets like pumps, motors, and gearboxes in power generation, oil & gas, and manufacturing facilities where Ethernet connectivity enables direct integration with SCADA and IIoT platforms.

​2. Core Technical Specifications​

• ​Measurement Performance:
  Velocity Range: 0-25mm/s RMS (±0.8% FS)
  Frequency Response: 10Hz–2kHz (±1dB)
  Sampling Rate: 5kHz
• ​Electrical Interfaces:
  Output: Modbus TCP/IP via RJ45
  Power: 18-36V DC (PoE+ optional)
  Protocol: IEEE 802.3af compliant
• ​Environmental Resilience:
  IP68 (3m/24hr submersion) / IP69K (100 bar @ 80°C)
  Operating Temperature: -40°C to +85°C
• ​Mechanical Construction:
  Housing: 316 stainless steel
  Mounting: M8×1.25 threaded stud
  Shock Resistance: 5,000g
• ​Signal Processing:
  24-bit ADC resolution
  True RMS detection (ISO 10816 compliant)
• ​Certifications:
  ATEX II 3G Ex ec IIC T85°C Gc
  IECEx Ex ec IIC T85°C Gc

​3. Industrial IoT Monitoring Applications​

This transmitter serves critical roles in connected industrial assets:

• ​Power Plant Turbines: Bearing health monitoring with real-time FFT streaming
• ​Offshore Pumping Stations: Cavitation detection in Zone 22 hazardous areas
• ​Mining Conveyor Drives: Gear mesh analysis via Ethernet-connected networks
• ​Refinery Compressors: Vibration trending integrated with DCS historians
• ​HVAC Chiller Plants: Motor imbalance detection in building management systems
• ​Paper Machine Rolls: Nip vibration analysis via Modbus TCP
• ​Water Treatment Facilities: Pump monitoring with remote diagnostics
• ​Wind Turbine Gearboxes: Condition-based maintenance data aggregation
  Its Modbus TCP/IP output enables direct connectivity to PLCs without gateways, while IP69K rating ensures reliability in food/pharmaceutical facilities with aggressive cleaning protocols.

​4. Smart Monitoring Advantages​

• ​IIoT Integration:
  Direct Modbus TCP register access for velocity RMS/Peak/Crest Factor
  Configurable polling rates (10ms–10s)
• ​Precision Measurement:
  Automatic temperature compensation (-40°C to +85°C)
  <0.25% linearity deviation across full scale
• ​Ruggedized Design:
  Hermetically welded housing withstands 85°C CIP chemicals
  PUR cable resists oils/hydraulic fluids (ISO 1817)
• ​Diagnostic Intelligence:
  Built-in FFT (400-line spectrum via Modbus)
  Over-temperature/over-range alarm registers
• ​Installation Efficiency:
  Single M8 mounting point reduces alignment errors
  PoE+ support (IEEE 802.3at) simplifies wiring
• ​Predictive Maintenance:
  Stores 2,000 timestamped peak events
  ISO 10816 severity-based alarm thresholds

​5. Operational Workflow & Ethernet Integration​

​Monitoring Sequence:

1. ​Vibration Sensing:
   • Piezoelectric crystal generates charge proportional to acceleration
2. ​Signal Conditioning:
   • IEPE constant current excitation (4mA)
   • 10Hz high-pass filter removes low-frequency noise
3. ​Digital Conversion:
   • 24-bit ADC samples at 5kHz
   • DSP calculates ISO-compliant velocity RMS
4. ​Ethernet Output:
   • Modbus TCP registers provide:
     • Velocity RMS (mm/s)
     • Velocity Peak (mm/s)
     • Crest Factor
     • Temperature (°C)
     • FFT spectrum (400 bins)

​Diagnostic Capabilities:

• ​Modbus Alarm Registers:

  ​Register​	​Fault Condition​	​Severity​
  40001	Sensor fault	Critical
  40002	Over-range (>23mm/s RMS)	Major
  40003	Under-range (<0.5mm/s)	Minor

• ​Network Features:
  DHCP/Static IP configuration
  Port 502 with TLS 1.2 encryption option
  Ping monitoring for network health
