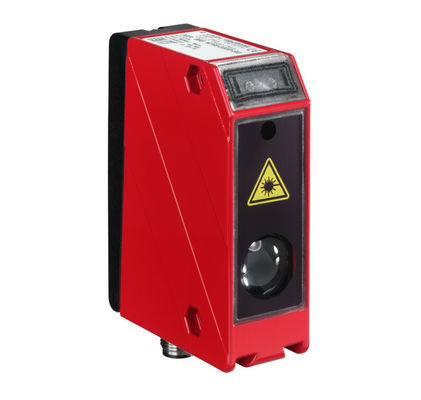

LEUZE ODSL 96B/DL6-2000-S12 Laser Sensor | 2000mm Range, DL6 Dual-Line & IP67 | High-Speed Logistics & AGV Navigation Systems

LEUZE ODSL 96B/DL6-2000-S12 Laser Sensor | 2000mm Range, DL6 Dual-Line & IP67 | High-Speed Logistics & AGV Navigation Systems

MOQ: 1
Price: $403/piece
Standard Packaging: 100*100*100mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
leuze
Certification
3C
Model Number
ODSL 96B/DL6-2000-S12
Length:
50 Mm
Power Supply:
24V DC
Number Of Inputs:
8
Output Current:
0.5A
Resolution:
0.7 Mm
Rated Operating Distance:
4 Mm
Efficiency In Percent:
95.5 %
Product Description

Precise Optical Distance Sensing

The LEUZE ODSL 96B/DL6 - 2000 - S12 is an advanced optical distance sensor. Employing the triangulation principle, it uses a red laser light source (Laser Class 2, IEC/EN 60825 - 1:2007). This enables it to accurately measure distances within a range of 50 - 2000 mm. The light spot size is carefully designed, allowing for precise detection even of small or irregularly shaped objects. Its optical system is highly sensitive, making it ideal for applications where exact distance determination is crucial, such as in robotics for object avoidance or in precision manufacturing for part alignment.

Stable Electrical Performance

Electronically, this sensor is engineered for reliability. It operates on a supply voltage typically in the range of 18 - 30 V DC, with a well - controlled residual ripple of 0 - 15% from UB. It features one analog output of the current type and two digital switching outputs with push - pull transistors. The switching frequency, along with a relatively short measurement time, ensures quick response to changes in distance. With built - in short - circuit protection, it can withstand electrical glitches, providing consistent performance in industrial electrical environments.

Durable and Environmentally Resilient Design

The mechanical design of the ODSL 96B/DL6 - 2000 - S12 emphasizes durability and environmental resilience. Its housing is made of die - cast zinc metal, which can endure vibrations and impacts common in industrial settings. Measuring a specific size (dimensions to be sourced), it has a compact form factor for easy integration. The glass lens cover protects the optical components. With an IP 67 and IP 69K protection rating, it is resistant to dust, water, and high - pressure washdowns. The M12 connector simplifies installation, making it suitable for a wide range of industrial applications, from factory floors to outdoor industrial facilities.





Attribute Category

Details

General Information



Product Name

Optical Distance Sensor

Model

ODSL 96B/DL6 - 2000 - S12

Manufacturer

LEUZE

Optical Attributes



Operating Principle

Triangulation

Light Source

Red Laser (Laser Class 2, IEC/EN 60825 - 1:2007)

Measurement Range

50 - 2000 mm

Light Spot Design

Carefully designed for precise detection of small/irregular objects

Sensitivity

High - sensitivity optical system

Electrical Attributes



Supply Voltage

18 - 30 V DC

Residual Ripple

0 - 15% from UB

Outputs

1 analog (current type), 2 digital (push - pull transistors)

Measurement Time

Relatively short

Protection Feature

Built - in short - circuit protection

Mechanical Attributes



Housing Material

Die - cast zinc metal

Dimensions

Specific (to be sourced)

Connector Type

M12

Environmental Attributes



Protection Ratings

IP 67, IP 69K

Resistance To

Dust, water, high - pressure washdowns

Applications



Typical Uses

Robotics (object avoidance), precision manufacturing (part alignment)
