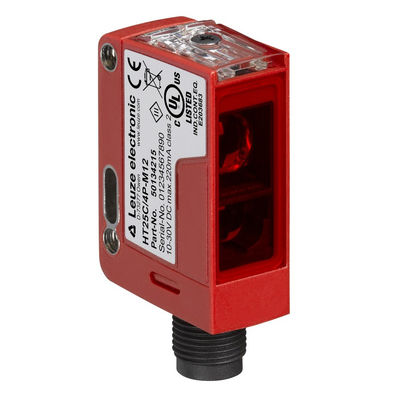

LEUZE HT25C/4P-M12 Photoelectric Sensor 4-Pin M12 Connector IP67 Robust Industrial Automation & Machine Safety Systems

LEUZE HT25C/4P-M12 Photoelectric Sensor 4-Pin M12 Connector IP67 Robust Industrial Automation & Machine Safety Systems

MOQ: 1
Price: $403/piece
Standard Packaging: 110*60*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
leuze
Certification
3C
Model Number
HT25C/4P-M12
Working Temperature:
-20°c~70°c
Resolution:
0.7 Mm
Diameter:
8 Mm
Output Voltage:
24V DC
Standard Target Plate:
100 Mm X 100 Mm
Supply Voltage:
24VDC(-15%~20%)
Power Consumption:
2.4W
Condition:
100% Original
Highlight:

LEUZE Photoelectric Sensor

,

4-Pin M12 Photoelectric Sensor

,

IP67 Photoelectric Sensor

Product Description

Superior Sensing Performance

The LEUZE HT25C/4P - M12 is a high - performing sensor designed for industrial applications. Operating on the diffuse reflection principle, it can accurately detect objects within a certain range. With a red LED light source, it offers reliable illumination for sensing. The sensor has a wide operating range, capable of detecting white objects (90% reflectivity) from 0.01 - 0.8 m, gray objects (18% reflectivity) from 0.02 - 0.6 m, and black objects (6% reflectivity) from 0.03 - 0.4 m. This wide range and the ability to detect different - colored objects make it suitable for diverse industrial scenarios, such as sorting products based on color or detecting the presence of items on a conveyor belt.

Reliable Electrical Characteristics

Electronically, the HT25C/4P - M12 is engineered for stability. It runs on a supply voltage of 10 - 30 V DC, with a residual ripple of 0 - 15% from UB. The open - circuit current is maintained at 0 - 15 mA. Equipped with two digital switching outputs featuring PNP transistors, it allows for flexible switching options, whether for light - or dark - switching operations. The sensor also has short - circuit protection, ensuring its safety and longevity even in the face of potential electrical malfunctions. With a switching frequency of 1,000 Hz, it can quickly respond to changes in the detected objects, making it efficient for high - speed industrial processes.

Sturdy Mechanical Design

The mechanical design of the HT25C/4P - M12 showcases its durability. Its housing is constructed from robust materials, providing resistance to the harsh conditions often found in industrial environments. Measuring 18.5 mm x 45.5 mm x 22.5 mm, it has a size that is both compact enough for easy integration and large enough to house its components effectively. The net weight of 25 g strikes a balance between portability and stability. The M12 connector simplifies the connection process, allowing for quick and secure installation. Additionally, with an IP 67 protection rating, it can withstand dust and water, making it suitable for use in various industrial settings, from manufacturing plants to outdoor storage facilities.



Attribute Category

Details

General Information



Product Name

Diffuse Sensor

Model

HT25C/4P - M12

Manufacturer

LEUZE

Optical Attributes



Operating Principle

Diffuse Reflection

Light Source

Red LED

Detection Range (White, 90% Reflectivity)

0.01 - 0.8 m

Detection Range (Gray, 18% Reflectivity)

0.02 - 0.6 m

Detection Range (Black, 6% Reflectivity)

0.03 - 0.4 m

Electrical Attributes



Supply Voltage

10 - 30 V DC

Residual Ripple

0 - 15% from UB

Open - Circuit Current

0 - 15 mA

Number of Digital Switching Outputs

2 (PNP transistors)

Switching Principle

Light/dark switching

Switching Frequency

1,000 Hz

Protection Feature

Short - circuit protection

Mechanical Attributes



Housing Material

Robust materials

Dimensions (W x H x L)

18.5 mm x 45.5 mm x 22.5 mm

Net Weight

25 g

Connector Type

M12

Environmental Attributes



Protection Rating

IP 67
