LEUZE ODSL 8/C66-500-S12 Laser Distance Sensor 500mm Range S12 Interface & IP67 Precision Automation & Robotic Guidance Solutions

LEUZE ODSL 8/C66-500-S12 Laser Distance Sensor 500mm Range S12 Interface & IP67 Precision Automation & Robotic Guidance Solutions

MOQ: 1
Price: 205$/piece
Standard Packaging: 110*60*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
leuze
Certification
3C
Model Number
8/C66-500-S12
Diameter:
12 Mm
Number Of Outputs:
1
Mass:
25 G
Output Type:
PNP
On Status:
15~30VDC
Storage Temperature:
-40°C~85°C
Operating Temperature:
-20°C To 60°C
Highlight:

500mm Laser Distance Sensor

,

IP67 Laser Distance Sensor

,

S12 Laser Distance Sensor

Product Description

Precise Distance Measurement

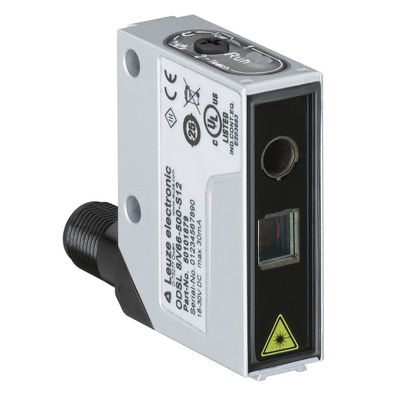

The LEUZE ODSL 8/C66 - 500 - S12 is an optical distance sensor renowned for its accuracy. Employing the triangulation principle, it measures distances from 20 to 500 mm. With a red laser light source (Laser Class 2, IEC/EN 60825 - 1:2007), it projects a light spot sized 2 mm x 6 mm at the sensor distance. The resolution ranges from 0.1 to 0.5 mm. It offers high accuracy, with 2% accuracy in the short range and 4% in the distant range. This makes it perfect for applications where exact distance determination is crucial, such as in automated manufacturing for part positioning or in logistics for package sizing.

Robust Electrical Configuration

Electronically, this sensor is designed for reliability. It operates on a supply voltage of 18 - 30 V DC, with a stable residual ripple of 0 - 15% from UB. It has one analog output of the current type and two digital switching outputs, both with push - pull transistors. The switching frequency is not specified, but with a measurement time of 2 - 7 ms, it can quickly respond to changes in distance. Equipped with short - circuit protection, it ensures stable operation even in the face of electrical glitches. The static 2 - point teach input simplifies calibration, allowing for easy adaptation to different measurement scenarios.

Durable and Adaptable Design

Constructed with a die - cast zinc metal housing and a glass lens cover, the ODSL 8/C66 - 500 - S12 is built to last. Measuring 15 mm x 48 mm x 38 mm and weighing 70 g, it has a compact and portable design. The sensor has an IP 67 and IP 69K protection rating, safeguarding it against dust, water, and high - pressure washdowns. It has c UL us approval, adhering to international safety standards. The M12 turning connector, with a 90° rotation angle, simplifies installation, making it suitable for various industrial setups, from factory floors to outdoor industrial applications.
