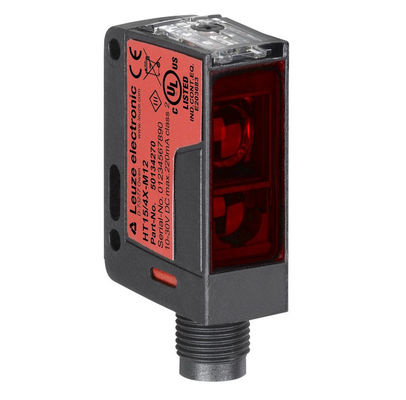

LEUZE HT15/4X-M8 Photoelectric Sensor 4-Channel Detection IP67 & M8 Connector High Speed Automation

LEUZE HT15/4X-M8 Photoelectric Sensor 4-Channel Detection IP67 & M8 Connector High Speed Automation

MOQ: 1
Price: $403/piece
Standard Packaging: 110*60*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
LEUZE
Certification
3C
Model Number
HT15/4X-M8
Net Weight:
1.5 Kg
Firmware Version:
V1.0
Length:
50 Mm
Tightening Torque:
0 ... 10 Nm
Core Cross Section:
Up To 2.5 Mm2
Dimensions:
100mm X 70mm X 50mm
Weight:
200g
Highlight:

High-Speed Photoelectric Sensor

,

M8 Photoelectric Sensor

,

IP67 Photoelectric Sensor

Product Description

Precise Optical Detection



The LEUZE HT15/4X - M8 is a remarkable industrial sensor with precise optical detection capabilities. Operating on the diffuse reflection principle, it can effectively sense objects in various industrial settings. The sensor uses a red LED light source, which provides reliable illumination for detection. It has a wide operating range, capable of detecting white objects (90% reflectivity) from 0.01 - 0.6 m, gray objects (18% reflectivity) from 0.02 - 0.4 m, and black objects (6% reflectivity) from 0.03 - 0.25 m. This versatility makes it suitable for applications where accurate object recognition is crucial, such as in sorting and packaging processes.



Stable Electrical Performance



In terms of electrical performance, the HT15/4X - M8 excels. It operates on a supply voltage of 10 - 30 V DC, with a residual ripple of 0 - 15% from UB. The open - circuit current is within 0 - 15 mA, ensuring energy - efficient operation. The sensor is equipped with two digital switching outputs with PNP transistors, allowing for both light and dark switching options. Additionally, it comes with short - circuit protection and polarity reversal protection. This not only safeguards the sensor from electrical malfunctions but also ensures long - term and stable performance in industrial electrical environments.



Durable Build and Adaptable Design



The mechanical design of the HT15/4X - M8 showcases its durability. Its housing is made of robust materials, which can withstand harsh industrial conditions. Measuring 14.5 mm x 34.2 mm x 18.3 mm, it has a compact size that enables easy integration into different setups. The net weight of 15 g further adds to its portability. With an operating temperature range of - 40 °C to 60 °C and a storage temperature range of - 40 °C to 70 °C, it can endure extreme temperatures. The IP 67 protection rating ensures protection against dust and water, making it suitable for use in various industrial applications, from manufacturing floors to outdoor industrial installations.




Attribute Category

Details

General Information



Product Name

Diffuse Sensor

Model

HT15/4X - M8

Manufacturer

LEUZE

Optical Attributes



Operating Principle

Diffuse Reflection

Light Source

Red LED

Detection Range (White, 90% Reflectivity)

0.01 - 0.6 m

Detection Range (Gray, 18% Reflectivity)

0.02 - 0.4 m

Detection Range (Black, 6% Reflectivity)

0.03 - 0.25 m

Electrical Attributes



Supply Voltage

10 - 30 V DC

Residual Ripple

0 - 15% from UB

Open - Circuit Current

0 - 15 mA

Number of Digital Switching Outputs

2 (PNP transistors)

Protection Features

Short - circuit protection, Polarity reversal protection

Mechanical Attributes



Housing Material

Robust materials

Dimensions (W x H x L)

14.5 mm x 34.2 mm x 18.3 mm

Net Weight

15 g

Environmental Attributes



Operating Temperature Range

- 40 °C - 60 °C

Storage Temperature Range

- 40 °C - 70 °C

Protection Rating

IP 67
