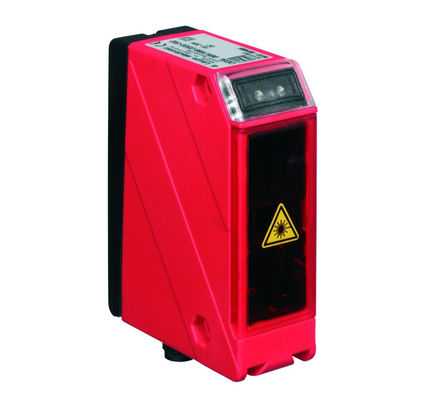

LEUZE ODSL96K/V66.1-2300-S12 Laser Sensor | 2300mm Range | IP67 Industrial | CE/ISO

LEUZE ODSL96K/V66.1-2300-S12 Laser Sensor | 2300mm Range | IP67 Industrial | CE/ISO

MOQ: 1
Price: 205$/piece
Standard Packaging: 110*60*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
leuze
Certification
3C
Model Number
ODSL96K/V66.1-2300-S12
Overload Protection:
500mA Overcurrent Protection
Mass:
25 G
Height:
290 Mm
Input Current:
0.5A
Standard Target Plate:
100 Mm X 100 Mm
Length:
53 Mm
Service:
One-stop Service
Sampling Period:
0~100s Configurable
Product Description

Precise Distance Measurement

The LEUZE ODSL96K/V66.1 - 2300 - S12 is a high - performance optical distance sensor. It uses a laser diode as its light source, emitting red light for accurate object detection. With a measurement range spanning from 150 to 2300 mm, it can precisely determine the distance to objects. The sensor offers a geometric resolution of 1.0 to 5.0 mm and an accuracy of 3% within this range. Its measurement time is relatively short, between 2 to 7 ms, enabling rapid data acquisition. This makes it suitable for applications where precise distance measurement is crucial, such as in automated machinery for positioning tasks.

Durable and Compact Design

This sensor features a durable and compact design. Its housing is made of plastic (PC), providing protection against mechanical stress and environmental factors. The lens cover, also made of plastic, ensures clear light transmission. With an IP67 protection rating, it is dust - tight and can withstand water immersion, making it suitable for use in harsh industrial environments. Measuring 30 mm in width, 90 mm in height, and 70 mm in length, it has a cuboid shape that allows for easy installation in various industrial setups. The M12 5 - pin connector ensures a stable connection to other components in the automation system.

Versatile Industrial Applications

The ODSL96K/V66.1 - 2300 - S12 has diverse applications in industrial automation. In manufacturing, it can be used for quality control, such as measuring the distance between parts during assembly to ensure proper fit. In material handling, it helps with the positioning of objects on conveyor belts or in storage systems. In the automotive industry, it can be applied to detect the position of vehicles on production lines. Its versatility, along with reliable performance in different conditions, makes it an essential component for enhancing efficiency and accuracy in industrial operations.



Attribute

Details

Product Type

Optical Distance Sensor

Model

ODSL96K/V66.1 - 2300 - S12

Sensing Principle

Laser - based (using a laser diode with red light emission)

Measurement Range

150 - 2300 mm

Geometric Resolution

1.0 - 5.0 mm

Accuracy

3% within the measurement range

Measurement Time

2 - 7 ms

Housing Material

Plastic (PC)

Lens Cover Material

Plastic

Protection Rating

IP67

Dimensions

30 mm (width) x 90 mm (height) x 70 mm (length)

Connector

M12 5 - pin

Applications

Manufacturing (quality control - measuring part distances during assembly), Material handling (object positioning on conveyor belts and in storage systems), Automotive (detecting vehicle positions on production lines)
