OMORN E3T-CD11 Photoelectric Sensor | 500mm Diffuse Reflective IP67 NPN | Factory Automation & AGV Navigation
  • Name
  • Name

OMORN E3T-CD11 Photoelectric Sensor | 500mm Diffuse Reflective IP67 NPN | Factory Automation & AGV Navigation

MOQ: 1
Price: 120$/piece
Standard Packaging: 100*100*100mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Details Information
Product Description
Detail Information
Place of Origin
Japan
Brand Name
OMORN
Certification
3C
Model Number
E3T-CD11
Connection Type:
Connector Plug M12 X 1 , 5-pin
Storage Temperature:
-40°C~85°C
Standard Target Plate:
100 Mm X 100 Mm
Operating Temperature:
-10°C To 60°C
Length:
53 Mm
Product Description

1. High-Precision Diffuse Reflective Detection

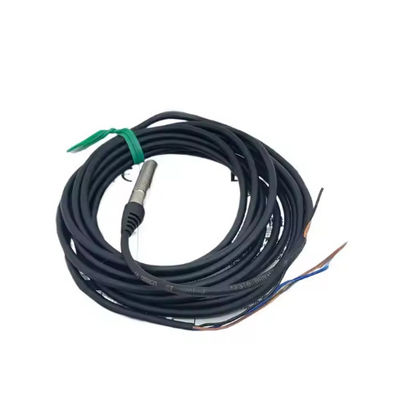

The OMORN E3T-CD11 is a compact photoelectric sensor engineered for reliable object detection in industrial automation. Using a diffuse reflective method with a 3–50mm sensing range (tested on 100x100mm white paper), it accurately identifies objects of varying shapes and materials. Its built-in amplifier ensures stable performance in ambient light up to 3,000 lux, while the infrared LED (870nm) minimizes interference from external sources. With a 0.5ms response time and NPN open collector output (30V DC/80mA), it integrates seamlessly with PLC systems. Technical specs include 12–24V DC power supply, short-circuit protection, and light-on operation mode for intuitive activation.

2. Rugged and Space-Saving Design



Featuring an IP65-rated SUS303 stainless steel housing, the E3T-CD11 resists dust, water jets, and corrosion, making it suitable for harsh environments. Its cylindrical M6 threaded body (18.5x9.5x7mm) allows flush mounting in confined spaces, while dual LED indicators (orange for operation, green for stability) simplify setup. The sensor withstands vibrations (10–55Hz) and shocks (500m/s²), ensuring durability in high-impact settings. Accessories like hexagonal nuts and adjustment drivers facilitate quick installation, reducing downtime.

3. Versatile Applications for Industrial Automation



Ideal for AGV navigation, conveyor sorting, and robotic assembly, the E3T-CD11 excels in detecting small parts and monitoring production lines. Its 50mm detection range supports efficient object counting and positioning, while pre-wired 2m cables streamline integration. OMORN’s ISO 9001 certification guarantees quality, and the sensor meets CE/RoHS compliance for global use. Customization options include cable extensions and output configurations, tailoring it to specific automation needs. Backed by a 2-year warranty, this sensor combines precision, durability, and ease of use to enhance productivity in smart factories.




Shape

Cylinder type

Sensing method

Diffuse-reflective

Sensing distance

White paper 100 x 100 mm: 3 to 50 mm

Differential distance

15% max. of sensing distance

Light source

Infrared LED (870 nm)

Power supply voltage

12 to 24 VDC±10% ripple (p-p) 10% max.

Current consumption

20 mA max.

Control output

NPN open collector
30 VDC max.
80 mA max.
Residual voltage: 1 V max.

Operation mode

Light-ON

Protective circuit

Output short-cut protection, Power supply reverse polarity protection

Response time

Operate or reset: 0.5 ms max.

Ambient illuminance

Incandescent lamp: 3,000 lx max.

Ambient temperature range (Operating)

-25 to 55 ℃ (with no freezing or condensation)

Ambient temperature range (Storage)

-30 to 70 ℃ (with no freezing or condensation)

Ambient humidity range (Operating)

35 to 85 % (with no condensation)

Ambient humidity range (Strage)

35 to 85 % (with no condensation)

Insulation resistance

20 MΩ min. (500 VDC megger)

Dielectric strength

500 VAC 50/60 Hz 1 min

Vibration resistance

Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h

Shock resistance

Destruction: 500 m/s2 3 times each in X, Y and Z directions

Degree of protection

IEC: IP65

Connection method

Pre-wired models (Cable length 2 m)

Indicator

Operation indicator (orange), Stability indicator (green)

Weight

Package: Approx. 40 g

Accessories

Instruction manual, Hexagonal nuts, Toothed washers, Adjustment driver

Material

Case: SUS303
Lens: Polysulphone
Display: Epoxy
Hexagon Nut: SUS303
Toothed washers: SUS303
