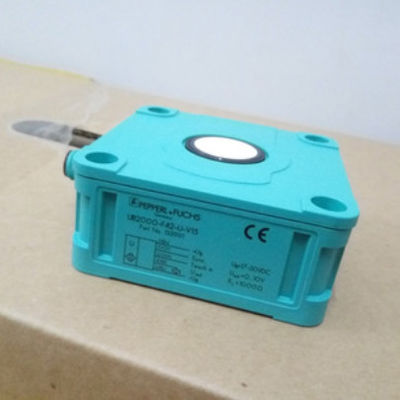

Ultrasonic Sensor UB2000-F42-U-V15 Pepperl+Fuchs

Ultrasonic Sensor UB2000-F42-U-V15 Pepperl+Fuchs

MOQ: 1
Price: 457$/piece
Standard Packaging: 90*90*50mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
Pepperl-Fuchs
Certification
3C
Model Number
UB2000-F42-U-V15
Standard Target Plate:
100 Mm X 100 Mm
Resolution:
0.7 Mm
Mass:
140 G
Highlight:

Pepperl Fuchs Ultrasonic sensor

,

UB2000-F42-U-V15 Ultrasonic sensor

Product Description
Product Description
Single head system
General specifications
Sensing range 60 ... 2000 mm
Adjustment range 90 ... 2000 mm
Dead band 0 ... 60 mm
Standard target plate 100 mm x 100 mm
Transducer frequency approx. 175 kHz
Response delay approx. 150 ms
Indicators/operating means
LED green solid green: Power on
LED yellow solid: object in evaluation range
flashing: program function
LED red normal operation: "fault"
program function: no object detected
Electrical specifications
Operating voltage 17 ... 30 V DC , ripple 10 %SS
No-load supply current ≤ 50 mA
Input/Output
Synchronization bi-directional
0 level -UB...+1 V
1 level: +4 V...+UB
input impedance: > 12 KOhm
synchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms
Synchronization frequency
  Common mode operation max. 30 Hz
  Multiplex operation ≤ 30/n Hz, n = number of sensors
Output
Output type 1 analog output 0 ... 10 V
Default setting evaluation limit A1: 90 mm , evaluation limit A2: 2000 mm , wide sound lobe
Resolution 0.7 mm
Deviation of the characteristic curve ± 1 % of full-scale value
Repeat accuracy ± 0.1 % of full-scale value
Load impedance > 1 kOhm
Temperature influence ± 1 % of full-scale value
Compliance with standards and directives
Standard conformity
  Standards EN IEC 60947-5-2:2020
IEC 60947-5-2:2019
EN 60947-5-7:2003
IEC 60947-5-7:2003
Approvals and certificates
UL approval cULus Listed, Class 2 Power Source
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type Connector plug M12 x 1 , 5-pin
Degree of protection IP54
Material
  Housing ABS
  Transducer epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT
Mass 140 g
Dimensions
  Height 80 mm
  Width 80 mm
  Length 34 mm



Classifications

System Classcode
ECLASS 13.0 27272803
ECLASS 12.0 27272803
ECLASS 11.0 27272803
ECLASS 10.0.1 27272803
ECLASS 9.0 27272803
ECLASS 8.0 27272803
ECLASS 5.1 27272803
ETIM 9.0 EC001849
ETIM 8.0 EC001849
ETIM 7.0 EC001849
ETIM 6.0 EC001849
ETIM 5.0 EC001849
UNSPSC 12.1 41111960
