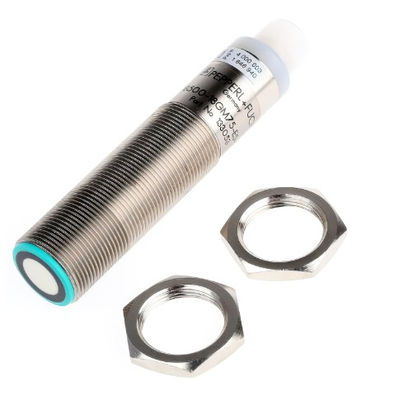

Ultrasonic Sensor UB500-18GM75-E5-V15 Pepperl+Fuchs Single Head System

Ultrasonic Sensor UB500-18GM75-E5-V15 Pepperl+Fuchs Single Head System

MOQ: 1
Price: 420$/piece
Standard Packaging: 103 x 45 x 46mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
Pepperl-Fuchs
Certification
3C
Model Number
UB500-18GM75-E5-V15
Standard Target Plate:
100 Mm X 100 Mm
Connection Type:
Connector Plug M12 X 1 , 5-pin
Mass:
60 G
Switching Frequency:
Max. 8 Hz
Highlight:

Pepperl Fuchs Ultrasonic sensor

,

Single head system Ultrasonic sensor

,

UB500-18GM75-E5-V15 Ultrasonic sensor

Product Description
Product Description
Single head system
General specifications
Sensing range 30 ... 500 mm
Adjustment range 50 ... 500 mm
Dead band 0 ... 30 mm
Standard target plate 100 mm x 100 mm
Transducer frequency approx. 380 kHz
Response delay approx. 50 ms
Indicators/operating means
LED yellow indication of the switching state
flashing: program function object detected
LED red solid red: Error
red, flashing: program function, object not detected
Electrical specifications
Operating voltage 10 ... 30 V DC , ripple 10 %SS
No-load supply current ≤ 50 mA
Input/Output
Synchronization 1 synchronous connection, bi-directional
0-level: -UB...+1 V
1-level: +4 V...+UB
input impedance: > 12 kΩ
synchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms
Synchronization frequency
  Common mode operation max. 95 Hz
  Multiplex operation ≤ 95 Hz / n, n = number of sensors, n ≤ 5
Input
Input type 1 program input,
operating range 1: -UB ... +1 V, operating range 2: +4 V ... +UB
input impedance: > 4.7 kΩ; program pulse: ≥ 1 s
Output
Output type 1 switch output PNP Normally open/closed , programmable
Rated operating current 200 mA , short-circuit/overload protected
Voltage drop ≤ 3 V
Repeat accuracy ≤ 1 %
Switching frequency max. 8 Hz
Range hysteresis 1 % of the set operating distance
Temperature influence ± 1.5 % of full-scale value
Compliance with standards and directives
Standard conformity
  Standards EN IEC 60947-5-2:2020
IEC 60947-5-2:2019
Approvals and certificates
UL approval cULus Listed, Class 2 Power Source
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type Connector plug M12 x 1 , 5-pin
Degree of protection IP67
Material
  Housing brass, nickel-plated
  Transducer epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT
Mass 60 g
Dimensions
  Length 85 mm
  Diameter 18 mm
Factory settings
Output Switch point A1: 50 mm
Switch point A2: 500 mm
output function: Window mode
output behavior: NO contact
Beam width wide



Classifications

System Classcode
ECLASS 13.0 27272803
ECLASS 12.0 27272803
ECLASS 11.0 27272803
ECLASS 10.0.1 27272803
ECLASS 9.0 27272803
ECLASS 8.0 27272803
ECLASS 5.1 27272803
ETIM 9.0 EC001849
ETIM 8.0 EC001849
ETIM 7.0 EC001849
ETIM 6.0 EC001849
ETIM 5.0 EC001849
UNSPSC 12.1 41111960
