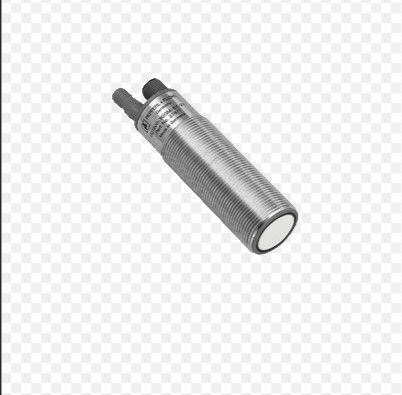

Ultrasonic Sensor UC2000-30GM-E6R2-V15 Connection Type Connector Plug M12 X 1 , 5-pin
  • Name

Ultrasonic Sensor UC2000-30GM-E6R2-V15 Connection Type Connector Plug M12 X 1 , 5-pin

MOQ: 1
Price: 623$/piece
Standard Packaging: 110*60*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Details Information
Product Description
Detail Information
Place of Origin
GERMANY
Brand Name
Pepperl-Fuchs
Certification
3C
Model Number
UC2000-30GM-E6R2-V15
Standard Target Plate:
100 Mm X 100 Mm
Response Delay:
65 Ms Minimum 195 Ms Factory Setting
Connection Type:
Connector Plug M12 X 1 , 5-pin
Mass:
140 G
Length:
94 Mm
Diameter:
30 Mm
Highlight:

5-pin Ultrasonic sensor

,

M12 x 1 Ultrasonic sensor

,

UC2000-30GM-E6R2-V15 Ultrasonic sensor

Product Description
Product Description
Single head system
General specifications
Sensing range 80 ... 2000 mm
Adjustment range 120 ... 2000 mm
Dead band 0 ... 80 mm
Standard target plate 100 mm x 100 mm
Transducer frequency approx. 180 kHz
Response delay 65 ms minimum
195 ms factory setting
Indicators/operating means
LED green solid: Power-on
flashing: Standby mode or program function object detected
LED yellow 1 solid: switching state switch output 1
flashing: program function
LED yellow 2 solid: switching state switch output 2
flashing: program function
LED red solid: temperature/program plug not connected
flashing: fault or program function object not detected
Temperature/teach-in connector Temperature compensation , Switch points programming , output function setting
Electrical specifications
Operating voltage 10 ... 30 V DC , ripple 10 %SS
No-load supply current ≤ 50 mA
Interface
Interface type RS 232, 9600 Bit/s , no parity, 8 data bits, 1 stop bit
Input/Output
Synchronization bi-directional
0 level -UB...+1 V
1 level: +4 V...+UB
input impedance: > 12 KOhm
synchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms
Synchronization frequency
  Common mode operation max. 30 Hz
  Multiplex operation ≤ 30 Hz / n , n = number of sensors , n ≤ 5
Output
Output type 2 switch outputs PNP, NO/NC, programmable
Rated operating current 200 mA , short-circuit/overload protected
Voltage drop ≤ 2.5 V
Repeat accuracy ≤ 0.1 % of full-scale value
Switching frequency ≤ 2.5 Hz
Range hysteresis 1 % of the adjusted operating range (default settings), programmable
Temperature influence ≤ 2 % from full-scale value (with temperature compensation)
≤ 0.2 %/K (without temperature compensation)
Compliance with standards and directives
Standard conformity
  Standards EN IEC 60947-5-2:2020
IEC 60947-5-2:2019
Approvals and certificates
UL approval cULus Listed, General Purpose
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type Connector plug M12 x 1 , 5-pin
Degree of protection IP65
Material
  Housing stainless steel (1.4305 / AISI 303)
PBT plastic parts
  Transducer epoxy resin/hollow glass sphere mixture; polyurethane foam
Mass 140 g
Dimensions
  Length 94 mm
  Diameter 30 mm
Factory settings
Output 1 Switching point: 200 mm
output function: Switch point operation mode
output behavior: NO contact
Output 2 Switching point: 2000 mm
output function: Switch point operation mode
output behavior: NO contact



Classifications

System Classcode
ECLASS 13.0 27272803
ECLASS 12.0 27272803
ECLASS 11.0 27272803
ECLASS 10.0.1 27272803
ECLASS 9.0 27272803
ECLASS 8.0 27272803
ECLASS 5.1 27272803
ETIM 9.0 EC001849
ETIM 8.0 EC001849
ETIM 7.0 EC001849
ETIM 6.0 EC001849
ETIM 5.0 EC001849
UNSPSC 12.1 41111960
