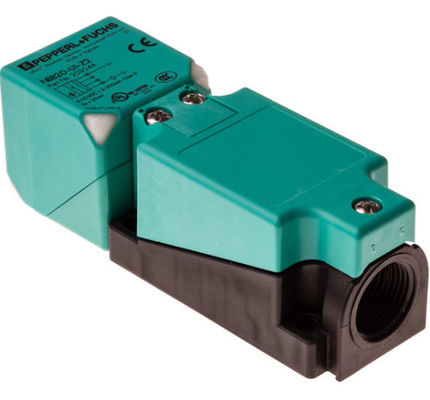

Inductive Sensor NBB20-U1-Z2 Pepperl+Fuchs
  • Name

Inductive Sensor NBB20-U1-Z2 Pepperl+Fuchs

MOQ: 1
Price: 200$/piece
Standard Packaging: 110*60*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Details Information
Product Description
Detail Information
Place of Origin
GERMANY
Brand Name
Pepperl-Fuchs
Certification
3C
Model Number
NBB20-U1-Z2
Rated Operating Distance:
20 Mm
Core Cross Section:
Up To 2.5 Mm2
Mass:
225 G
Degree Of Protection:
IP68 / IP69K
Highlight:

NBB20-U1-Z2 Inductive sensor

,

Inductive sensor NBB20-U1-Z2

,

Pepperl Fuchs Inductive sensor

Product Description
General specifications
Switching function Normally open/closed (NO/NC)
Output type Two-wire
Rated operating distance 20 mm
Installation flush
Output polarity DC
Assured operating distance 0 ... 16.2 mm
Actual operating distance 18 ... 22 mm typ. 20 mm
Reduction factor rAl 0.3
Reduction factor rCu 0.3
Reduction factor r304 0.7
Output type 2-wire
Nominal ratings
Operating voltage 5 ... 60 V DC
Switching frequency 0 ... 250 Hz
Hysteresis typ. 5 %
Reverse polarity protection reverse polarity tolerant
Short-circuit protection yes
Voltage drop ≤ 5 V
Voltage drop at IL
  Voltage drop IL = 100 mA, switching element on ... 5 V
Operating current 2 ... 200 mA
Off-state current 0 ... 0.5 mA
Switching state indicator 2 LED, yellow
Functional safety related parameters
MTTFd 1162 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Compliance with standards and directives
Standard conformity
  Standards EN IEC 60947-5-2
Approvals and certificates
UL approval cULus Listed, General Purpose
CCC approval Certified by China Compulsory Certification (CCC)
Ambient conditions
Ambient temperature -25 ... 85 °C (-13 ... 185 °F)
Mechanical specifications
Connection type screw terminals
Information for connection A maximum of two conductors with the same core cross section may be mounted on one terminal connection!
tightening torque 1.2 Nm + 10 %
Core cross section up to 2.5 mm2
  Minimum core cross-section without wire end ferrules 0.5 mm2 , with connector sleeves 0.34 mm2
  Maximum core cross-section without wire end ferrules 2.5 mm2 , with connector sleeves 1.5 mm2
Housing material PA/metal with epoxy powder coating
Sensing face PA
Housing base plastic
Degree of protection IP68 / IP69K
Mass 225 g
Dimensions
  Height 40 mm
  Width 40 mm
  Length 118 mm
Note Tightening torque: 1.8 Nm (housing)



Classifications

System Classcode
ECLASS 13.0 27274001
ECLASS 12.0 27274001
ECLASS 11.0 27270101
ECLASS 10.0.1 27270101
ECLASS 9.0 27270101
ECLASS 8.0 27270101
ECLASS 5.1 27270101
ETIM 9.0 EC002714
ETIM 8.0 EC002714
ETIM 7.0 EC002714
ETIM 6.0 EC002714
ETIM 5.0 EC002714
UNSPSC 12.1 39121550
