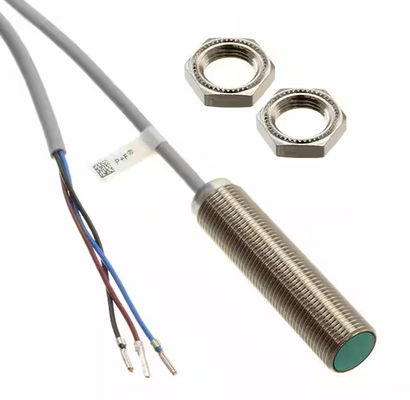

Inductive Sensor NBB2-12GM50-E2 Pepperl+Fuchs 12mm Diameter

Inductive Sensor NBB2-12GM50-E2 Pepperl+Fuchs 12mm Diameter

MOQ: 1
Price: 183$/piece
Standard Packaging: 103 x 45 x 46mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
Pepperl-Fuchs
Certification
3C
Model Number
NBB2-12GM50-E2
Rated Operating Distance:
2 Mm
Mass:
86 G
Length:
53 Mm
Diameter:
12 Mm
Highlight:

Inductive sensor NBB2-12GM50-E2

,

Pepper Fuchs Inductive sensor

,

NBB2-12GM50-E2 Inductive sensor

Product Description
General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance 2 mm
Installation flush
Output polarity DC
Assured operating distance 0 ... 1.62 mm
Actuating element mild steel, e. g. 1.0037, SR235JR (formerly St37-2)
12 mm x 12 mm x 1 mm
Reduction factor rAl 0.29
Reduction factor rCu 0.23
Reduction factor r304 0.78
Reduction factor rBrass 0.42
Output type 3-wire
Nominal ratings
Operating voltage 5 ... 36 V
Switching frequency 0 ... 3500 Hz
Hysteresis typ. 5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 1 V
Operating current 0 ... 200 mA
Off-state current max. 20 µA
No-load supply current ≤ 10 mA
Time delay before availability ≤ 10 ms
Switching state indicator LED, yellow
Functional safety related parameters
MTTFd 1721 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Conformity
PWIS conformity VDMA 24364-C1/T100°C-W
Compliance with standards and directives
Standard conformity
  Standards EN IEC 60947-5-2
Approvals and certificates
Protection class II
  Rated insulation voltage 36 V
  Rated impulse withstand voltage 500 V
UL approval cULus Listed, General Purpose, Class 2 Power Source
CCC approval CCC approval / marking not required for products rated ≤36 V
Marine approval DNVGL TAA00003AK
Ambient conditions
Ambient temperature -40 ... 85 °C (-40 ... 185 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type cable
Housing material brass , white bronze coated
Sensing face PBT , green
Degree of protection IP65 / IP66 / IP67 / IP68
Cable
  Wire end ferrules yes
  Cable diameter 4.3 mm ± 0.15 mm
  Bending radius > 10 x cable diameter
  Material PVC
  Color black
  Number of cores 3
  Core cross section 0.34 mm2
  Length 2 m
Mass 86 g
Dimensions
  Length 53 mm
  Diameter 12 mm
Mounting with nuts, M12
Tightening torque 0 ... 10 Nm
General information
Scope of delivery 2 self locking nuts in scope of delivery



Classifications

System Classcode
ECLASS 13.0 27274001
ECLASS 12.0 27274001
ECLASS 11.0 27270101
ECLASS 10.0.1 27270101
ECLASS 9.0 27270101
ECLASS 8.0 27270101
ECLASS 5.1 27270101
ETIM 9.0 EC002714
ETIM 8.0 EC002714
ETIM 7.0 EC002714
ETIM 6.0 EC002714
ETIM 5.0 EC002714
UNSPSC 12.1 39121550
