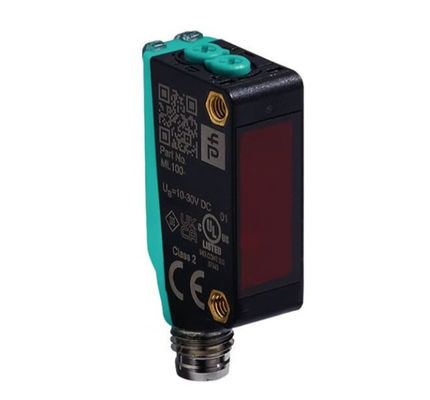

Retroreflective Sensor ML100-55/95/103 Pepperl+Fuchs IP67 Protection

Retroreflective Sensor ML100-55/95/103 Pepperl+Fuchs IP67 Protection

MOQ: 1
Price: 306$/piece
Standard Packaging: 120*100*50mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
Pepperl-Fuchs
Certification
3C
Model Number
ML100-55/95/103
Switching Frequency:
1000 Hz
Degree Of Protection:
IP67
Highlight:

ML100-55 Retroreflective sensor

,

Retroreflective sensor IP67

Product Description
Product Description
Retroreflective sensor with polarization filter, plastic housing, 5 m detection range, red light, sensitivity adjuster, light/dark on, DC version, PNP output, M8 plug
General specifications
Effective detection range 0 ... 5 m
Reflector distance 0.02 ... 5 m
Threshold detection range 7 m
Reference target H50 reflector
Light source LED
Light type modulated visible red light
Polarization filter yes
Diameter of the light spot approx. 500 mm at a distance of 7 m
Opening angle approx. 4 °
Optical face frontal
Ambient light limit EN 60947-5-2:2007+A1:2012
Functional safety related parameters
MTTFd 860 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Indicators/operating means
Operation indicator LED green: power on
Function indicator LED yellow: lights up when receiving the light beam ; flashes when falling short of the operating reserve; OFF when light beam is interrupted
Control elements sensitivity adjustment
Control elements Light-on/dark-on changeover switch
Electrical specifications
Operating voltage 10 ... 30 V DC
Ripple max. 10 %
No-load supply current < 20 mA
Output
Switching type The switching type of the sensor is adjustable. The default setting is: light-on
Signal output 1 PNP output, short-circuit protected, reverse polarity protected, open collector
Switching voltage max. 30 V DC
Switching current max. 100 mA , resistive load
Voltage drop ≤ 1.5 V DC
Switching frequency 1000 Hz
Response time 0.5 ms
Conformity
Product standard EN 60947-5-2
Approvals and certificates
UL approval cULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -30 ... 60 °C (-22 ... 140 °F)
Storage temperature -40 ... 70 °C (-40 ... 158 °F)
Mechanical specifications
Degree of protection IP67
Connection Connector M8 x 1 , 4-pin
Material
  Housing PC (Polycarbonate)
  Optical face PMMA
Mass approx. 10 g
Tightening torque, fastening screws 0.6 Nm
Dimensions
  Height 31 mm
  Width 11 mm
  Depth 20 mm



Classifications

System Classcode
ECLASS 13.0 27270902
ECLASS 12.0 27270902
ECLASS 11.0 27270902
ECLASS 10.0.1 27270902
ECLASS 9.0 27270902
ECLASS 8.0 27270902
ECLASS 5.1 27270902
ETIM 9.0 EC002717
ETIM 8.0 EC002717
ETIM 7.0 EC002717
ETIM 6.0 EC002717
ETIM 5.0 EC002717
UNSPSC 12.1 39121528
