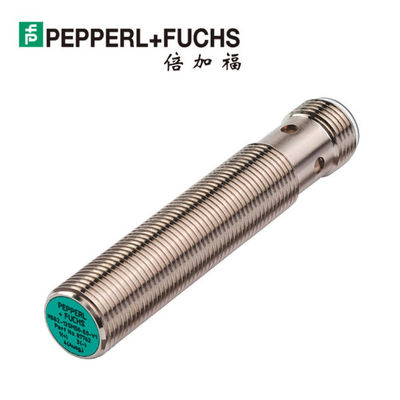

Inductive Sensor NRN10-12GS40-E2-V1 Pepperl+Fuchs

Inductive Sensor NRN10-12GS40-E2-V1 Pepperl+Fuchs

MOQ: 1
Price: $118/piece
Standard Packaging: 103 x 45 x 46mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
Pepperl-Fuchs
Certification
3C
Model Number
NRN10-12GS40-E2-V1
Output Type:
PNP
Rated Operating Distance:
10 Mm
Length:
55 Mm
Diameter:
12 Mm
Highlight:

NRN10-12GS40-E2-V1 Inductive sensor

,

12mm Diameter Inductive sensor

Product Description
General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance 10 mm
Installation non-flush
Output polarity DC
Assured operating distance 0 ... 8.1 mm
Reduction factor rAl 1
Reduction factor rCu 1
Reduction factor r304 1
Reduction factor rSt37 1
Output type 3-wire
Nominal ratings
Operating voltage 10 ... 30 V
Switching frequency 0 ... 1500 Hz
Hysteresis typ. 5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 2 V
Rated insulation voltage 60 V
Operating current 0 ... 200 mA
Off-state current 0 ... 0.5 mA typ. 0.1 µA at 25 °C
No-load supply current ≤ 14 mA
Time delay before availability max. 15 ms
Constant magnetic field 200 mT
Alternating magnetic field 200 mT
Switching state indicator Multihole-LED, yellow
Functional safety related parameters
MTTFd 1393 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Compliance with standards and directives
Standard conformity
  Standards EN IEC 60947-5-2
Approvals and certificates
Protection class II
  Rated insulation voltage 60 V
  Rated impulse withstand voltage 800 V
UL approval cULus Listed, General Purpose
Class 2 power source
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type Connector plug M12 x 1 , 4-pin
Housing material Stainless steel 1.4305 / AISI 303
Sensing face PBT
Degree of protection IP67
Mass 15 g
Dimensions
  Length 55 mm
  Diameter 12 mm
General information
Scope of delivery 2 self locking nuts in scope of delivery



Classifications

System Classcode
ECLASS 13.0 27274001
ECLASS 12.0 27274001
ECLASS 11.0 27270101
ECLASS 10.0.1 27270101
ECLASS 9.0 27270101
ECLASS 8.0 27270101
ECLASS 5.1 27270101
ETIM 9.0 EC002714
ETIM 8.0 EC002714
ETIM 7.0 EC002714
ETIM 6.0 EC002714
ETIM 5.0 EC002714
UNSPSC 12.1 39121550
