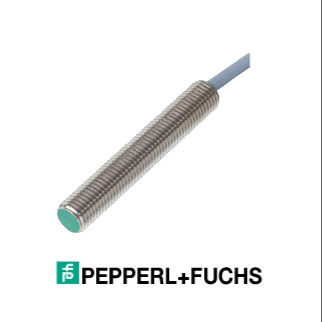

Inductive Sensor NBB2-8GM50-E2 Pepperl+Fuchs 8Mm Diameter

Inductive Sensor NBB2-8GM50-E2 Pepperl+Fuchs 8Mm Diameter

MOQ: 1
Price: $116/piece
Standard Packaging: 103 x 45 x 46mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
Pepperl-Fuchs
Certification
3C
Model Number
NBB2-8GM50-E2
Output Type:
PNP
Rated Operating Distance:
2 Mm
Length:
50 Mm
Diameter:
8 Mm
Highlight:

Inductive sensor NBB2-8GM50-E2

,

Pepperl Fuchs Inductive sensor

Product Description
General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance 2 mm
Installation flush
Output polarity DC
Assured operating distance 0 ... 1.62 mm
Actuating element mild steel, e. g. 1.0037, SR235JR (formerly St37-2)
8 mm x 8 mm x 1 mm
Reduction factor rAl 0.4
Reduction factor rCu 0.3
Reduction factor r304 0.75
Reduction factor rBrass 0.5
Output type 3-wire
Nominal ratings
Operating voltage 5 ... 30 V
Switching frequency 0 ... 6000 Hz
Hysteresis typ. 5%
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 1.5 V
Operating current 0 ... 100 mA
Off-state current 0 ... 0.2 mA
No-load supply current ≤ 10 mA
Time delay before availability ≤ 100 ms
Switching state indicator LED, yellow
Functional safety related parameters
MTTFd 960 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Compliance with standards and directives
Standard conformity
  Standards EN IEC 60947-5-2
Approvals and certificates
UL approval cULus Listed, General Purpose, Class 2 Power Source
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -40 ... 85 °C (-40 ... 185 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type cable
Housing material brass, nickel-plated
Sensing face LCP
Degree of protection IP65 / IP66 / IP67
Cable
  Wire end ferrules yes
  Cable diameter 3.5 mm ± 0.1 mm
  Bending radius > 10 x cable diameter
  Material PVC
  Color black
  Number of cores 3
  Core cross section 0.14 mm2
  Length 2 m
Dimensions
  Length 50 mm
  Diameter 8 mm
General information
Scope of delivery 2 hex nuts included



Classifications

System Classcode
ECLASS 13.0 27274001
ECLASS 12.0 27274001
ECLASS 11.0 27270101
ECLASS 10.0.1 27270101
ECLASS 9.0 27270101
ECLASS 8.0 27270101
ECLASS 5.1 27270101
ETIM 9.0 EC002714
ETIM 8.0 EC002714
ETIM 7.0 EC002714
ETIM 6.0 EC002714
ETIM 5.0 EC002714
UNSPSC 12.1 39121550
