MOQ: | 1set |
Price: | $10-$1000 |
Standard Packaging: | 100% original carton package |
Delivery Period: | 5-10 workday |
Payment Method: | TNT DHL FEDEX EMS UPS |
Supply Capacity: | 100set/month |

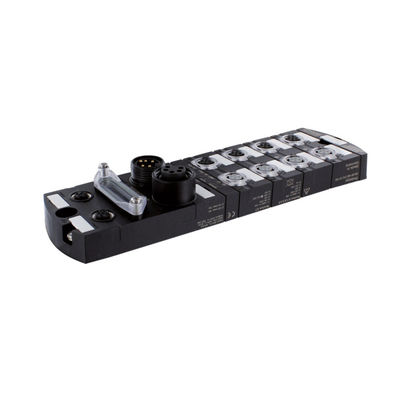

55132 MURR ELEKTRONIK Impact67 PN DIO12 IOL4 IRT 7/8" 5pin
Art.No.: |
55132 |
Weight: |
0.435 kg |
Country of origin: |
DE |
Digital inputs/outputs
DIO12 IOL4 (IRT)
Ethernet 10/100 Mbit/s; M12, D-coded
7/8", 5-pole, 2× max. 9 A
M12, 5-pole, A-coded
IO-Link Master V1.1.2
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
mounting compatible with I/O modules of the MVK series
Features:
Electrical data | Supply
Norm operating voltage |
EN 61131-2 |
---|---|
Operating voltage US DC |
24 V |
Operating voltage UA DC |
24 V |
Total current UA max. |
9 A |
Total current US max. |
9 A |
Electrical data | Input
Overload resistant |
yes |
---|---|
Short-circuit protected |
yes |
Type input |
PNP, for 3-wire sensors or mechanical switches, IO-Link Devices |
Sensor current US per input max. |
0,2 A |
Sensor current US per IO-Link port max. |
1 A |
Electrical data | Output
Overload resistant |
yes |
---|---|
Short-circuit protected |
yes |
Output current per pin max. |
1,6 A |
Lamp load |
10 W |
Industrial communication
Supported protocol |
PROFINET |
---|
Industrial communication | Profinet
Number of active connections (IO controller) max. |
2 |
---|---|
FSU (Fast-Start-Up) |
yes |
Fast start up time max. |
0,5 s |
IRT (network communication) |
yes |
PROFINET Netload Class |
III |
PROFINET addressing |
DCP |
PROFINET conformance class |
C |
PROFINET specification |
V2.3 |
Shared device/input |
yes |
Industrial communication | IO-Link
IO-Link type |
4× Master |
---|---|
Port Class |
B |
IO-Link transmission rate |
COM1, COM2, COM3 |
IO-Link process data length input |
32 Bytes |
IO-Link process data length output |
32 Bytes |
Automatic baudrate detection |
yes |
Diagnostics
Actuator warning |
per channel via LED and BUS |
---|---|
Diagnostic via BUS |
per module and channel |
Diagnostic via LED |
per module and channel |
IO-Link events |
No voltage, Undervoltage supply |
LED display |
Ethernet connection/data traffic |
Cable break |
per port |
Device protection | Electrical
Degree of protection (EN IEC 60529) |
IP67 |
---|
Mechanical data | Mounting data
Suitable for mounting type |
2-hole screw mounting |
---|---|
Height |
39 mm |
Width |
63 mm |
Depth |
225 mm |
Environmental characteristics | Climatic
Operating temperature min. |
-25 °C |
---|---|
Operating temperature max. |
55 °C |
Storage temperature min. |
-25 °C |
Storage temperature max. |
70 °C |
FAQ:
1. who are we?
We are based in Fijian, China, start from 2017,sell to Mid East(50.00%),Western Europe(25.00%),Southeast Asia(20.00%),Domestic Market(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PLC,SENSOR,HMI,TRANSMITTERS
4. why should you buy from us not from other suppliers?
Zhicheng insists on striving for excellence business philosophy. whether its industrial automation spare parts or delivery efficiency,We are committed to doing better.
