PN/3500/53 Bently Nevada Overspeed Detection Module Electronic Overspeed Detection System

PN/3500/53 Bently Nevada Overspeed Detection Module Electronic Overspeed Detection System

MOQ: 1
Price: Negotiate
Standard Packaging: Carton
Delivery Period: Negotiate
Payment Method: T/T, L/C
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
USA
Brand Name
Bently Nevada
Model Number
PN/3500/53
Condition:
New And Original
Manufacturer:
Bently Nevada
Product No:
PN/3500/53
Product Type:
Overspeed Detection Module
PPower Supply Type (Top Slot):
Low Voltage DC Supply
Power Supply Type (Bottom Slot):
No Supply
Agency Approval:
None
Shipping Weight:
2 Kg
Highlight:

PN/3500/53 Overspeed Detection Module

,

Bently Nevada Overspeed Detection Module

,

Electronic Overspeed Detection Module

Product Description

PN/3500/53 Bently Nevada Overspeed Detection Module Electronic Overspeed Detection System



Product Description






Bently Nevada’s Electronic Overspeed Detection System for the 3500 Series Machinery Detection System provides a highly reliable, fast response, redundant tachometer system intended specifically for use as part of an overspeed protection system. It is designed to meet the requirements of American Petroleum Institute Standards 670 and 612 pertaining to overspeed protection. 3500/53 modules can be combined to form a 2-out-of-2 or 2-out-of-3 (recommended) voting system. The use of redundant power supplies in a 3500 rack containing the Overspeed Detection System is required.



PN/3500/53 Bently Nevada Overspeed Detection Module Electronic Overspeed Detection System



PN/3500/53 Bently Nevada Overspeed Detection Module Electronic Overspeed Detection System





Product Information




  • Highly Reliable
  • Fast Response
  • Combines to Form a 2-Out-Of-2 or 2-Out-Of-3 Voting System

Inputs

  • Signal: Each Overspeed Detection module accepts a single transducer signal from a proximity probe transducer or magnetic pickup. The input signal range is +10.0 V to -24.0 V. Signals exceeding this range are limited internally by the module.
  • Input Impedance: 20 .
  • Power Consumption: 8.0 Watts, typical.
  • Transducers: Bently Nevada 3300 8 mm Proximitor®; 3300 16 mm HTPS, 7200 5 mm, 8 mm, 11 mm, and 14 mm Proximitor®; 3300 RAM Proximitor®, or Magnetic pickups

Outputs

Front Panel LEDs

  • OK LED: Indicates when the 3500/53 Module is operating properly.
  • TX/RX LED: Indicates when the 3500/53 Module is communicating with other modules in the 3500 rack.
  • Bypass LED: Indicates when the 3500/53 Module is in Bypass Mode.
  • Test Mode LED: Indicates when the 3500/53 is in Test Mode
  • Alarm LEDs: Indicates that an alarm condition has occurred with the associated relay.
  • Buffered Transducer Outputs: The front of each module has one coaxial connector for buffered output. Each connector is short circuit and ESD protected.
  • Output Impedance: 550 . Transducer Power Supply: -24 Vdc, 40 mA maximum.
  • Recorder: +4 to +20 mA. Values are proportional to module full-scale range (rpm). Module operation is unaffected by short circuits on recorder output.
  • Voltage Compliance (current output): 0 to +12 Vdc range across load. Load resistance is 0 to 600 .
  • Resolution: 0.3662 µA per bit ±0.25% error at room temperature ±0.7% error over temperature range. Update rate approximately 100 ms

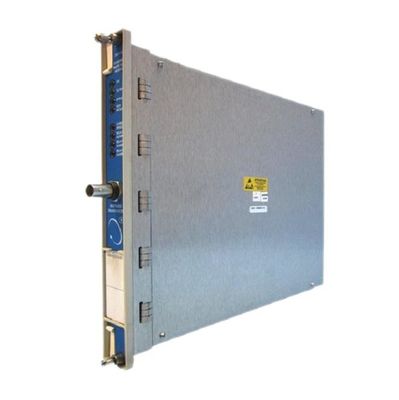

Product Photo








PN/3500/53 Bently Nevada Overspeed Detection Module Electronic Overspeed Detection System 2



PN/3500/53 Bently Nevada Overspeed Detection Module Electronic Overspeed Detection System 3
