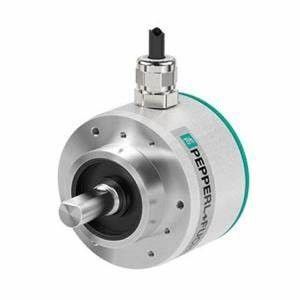

Pepperl+Fuchs Incremental rotary encoder ENI58IL-S10CA5-1024UD1-RC1 Housing ∅ 58 mm

Pepperl+Fuchs Incremental rotary encoder ENI58IL-S10CA5-1024UD1-RC1 Housing ∅ 58 mm

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Payment Method: T/T
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
Germany
Brand Name
Pepperl+Fuchs
Certification
UL,CCC,etc.
Model Number
ENI58IL-S10CA5-1024UD1-RC1
Manufacturer:
Pepperl+Fuchs
Product NO.:
ENI58IL-S10CA5-1024UD1-RC1
Product Type:
Incremental Rotary Encoder
Warranty:
1 Year
Moq:
1 Set
Highlight:

ENI58IL-S10CA5-1024UD1 Incremental rotary encoder

,

RC1 Incremental rotary encoder

Product Description



Pepperl+Fuchs Incremental rotary encoder ENI58IL-S10CA5-1024UD1-RC1 Housing ∅ 58 mm





Specification




Part Number: ENI58IL-S10CA5-1024UD1-RC1
Manufacturer: Pepperl+Fuchs
Condition : Brand New
Warranty : 12 months
Product Type Incremental rotary encoder





                    Pepperl+Fuchs Incremental rotary encoder ENI58IL-S10CA5-1024UD1-RC1 Housing ∅ 58 mm 0

Datasheet excerpt: Technical data of ENI58IL-S

General specifications
Detection type photoelectric sampling
Linearity error ± 0.025 °
Pulse count max. 5000
Functional safety related parameters
MTTFd 140 a
Mission Time (TM) 20 a
L10 70 E+9 at 6000 rpm
Diagnostic Coverage (DC) 0 %
Electrical specifications
Operating voltage 4.75 ... 30 V DC
No-load supply current max. 50 mA
Output
Output type push-pull or RS422 (universal output driver, output level depending on input voltage)
Load current max. per channel 40 mA , short-circuit protected, reverse polarity protected
Output frequency max. 400 kHz
Rise time 300 ns
Phase position A to B
  Pulse counts < 3600 90 ° ± 9 ° electrical
  Pulse counts ≥ 3600 90 ° ± 15 ° electrical
Duty cycle 1/2 ± 10 %
Connection
Connector M12 connector, 8-pin
M12 connector, 5 pin
M23 connector, 12-pin
Cable ∅6 mm, 4 x 2 x 0.14 mm2
Fixed cable with M12 plug. 5-pin
Fixed cable with M12 plug. 8-pin
Standard conformity
Degree of protection DIN EN 60529, IP65, IP67
Climatic testing DIN EN 60068-2-78 , no moisture condensation
Emitted interference EN 61000-6-4:2007/A1:2011
Noise immunity EN 61000-6-2:2005
Shock resistance DIN EN 60068-2-27, 300 g, 6 ms
Vibration resistance DIN EN 60068-2-6, 30 g, 10 ... 2000 Hz
Approvals and certificates
UL approval E223176 , cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure , if UL marking is marked on the product. For use in NFPA 79 Applications only. adapters providing field wiring on request
  Maximum permissible ambient temperature max. 80 °C (max. 176 °F)
Ambient conditions
Operating temperature -40 ... 85 °C (-40 ... 185 °F) , fixed cable
-5 ... 85 °C (23 ... 185 °F) , movable cable
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Material
  Housing 3.2315 aluminum (AlMgSi1, saltwater-proof)
  Flange 3.2315 aluminum (AlMgSi1, saltwater-proof)
  Shaft Solid shaft Stainless steel
Mass < 300 g without cable
Rotational speed max. 12000 min -1 for IP65 , max. 6000 min -1 for IP67
Moment of inertia ≤ 35 gcm2
Starting torque ≤ 1 Ncm for IP65 , ≤ 2.5 Ncm for IP67
Shaft load
  Axial 40 N at max. 6000 min-1
10 N at max. 12000 min-1
  Radial 80 N at max. 6000 min-1
20 N at max. 12000 min-1
Dimensions
  Diameter 58.5 mm



Classifications







System Classcode
ECLASS 13.0 27270501
ECLASS 12.0 27270501
ECLASS 11.0 27270501
ECLASS 10.0.1 27270501
ECLASS 9.0 27270501
ECLASS 8.0 27270501
ECLASS 5.1 27270501
ETIM 9.0 EC001486
ETIM 8.0 EC001486
ETIM 7.0 EC001486
ETIM 6.0 EC001486
ETIM 5.0 EC001486
UNSPSC 12.1 39121527









Cooperative Brand




Pepperl+Fuchs Incremental rotary encoder ENI58IL-S10CA5-1024UD1-RC1 Housing ∅ 58 mm 1



Packaging & Shipping




Pepperl+Fuchs Incremental rotary encoder ENI58IL-S10CA5-1024UD1-RC1 Housing ∅ 58 mm 2Pepperl+Fuchs Incremental rotary encoder ENI58IL-S10CA5-1024UD1-RC1 Housing ∅ 58 mm 3

Pepperl+Fuchs Incremental rotary encoder ENI58IL-S10CA5-1024UD1-RC1 Housing ∅ 58 mm 4

Pepperl+Fuchs Incremental rotary encoder ENI58IL-S10CA5-1024UD1-RC1 Housing ∅ 58 mm 5



Why Choose Us




Pepperl+Fuchs Incremental rotary encoder ENI58IL-S10CA5-1024UD1-RC1 Housing ∅ 58 mm 6

Pepperl+Fuchs Incremental rotary encoder ENI58IL-S10CA5-1024UD1-RC1 Housing ∅ 58 mm 7Pepperl+Fuchs Incremental rotary encoder ENI58IL-S10CA5-1024UD1-RC1 Housing ∅ 58 mm 8







Xiamen ZhiCheng Automation Technology Co., Ltd

Xiamen ZhiCheng Automation Technology Co., Ltd it is a leading global supplier of control system components. We specialize in control systems and drives.

With many years of experience in the industrial sector, we consistently deliver the highest quality of spare parts. We have tens of thousands of spare partsand spare parts warehouse . Products and services to serve for installing of users control system,Distributed control systems, programmable controllers, panel controller and drive!

We major in DCS system,Sensor,PLC,Connector,Valve, and Instrument,MAGNETRON,RO Membrane. With many years of experience in the industrial sector, we consistently deliver the highest quality of spare parts.which make sure that all this jobs are perfectly.

If you have any further questions, please don't hesitate to contact us.



More about us , u can view :
Official web: http://www.zcsensors.com/
Alibaba web: https://zcsensors.en.alibaba.com/
