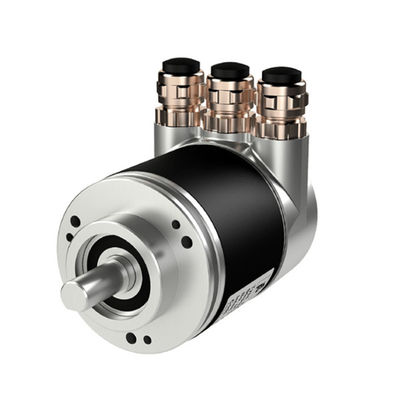

Pepperl+Fuchs Multiturn Absolute Rotary Encoder PVM58N-011AGR0BN-1213

Pepperl+Fuchs Multiturn Absolute Rotary Encoder PVM58N-011AGR0BN-1213

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Payment Method: T/T
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
Germany
Brand Name
Pepperl+Fuchs
Certification
UL,CCC,etc.
Model Number
PVM58N-011AGR0BN-1213
Manufacturer:
Pepperl+Fuchs
Product NO.:
PVM58N-011AGR0BN-1213
Product Type:
Multiturn Absolute Rotary Encoder
Warranty:
1 Year
Moq:
1 Set
Highlight:

PVM58N-011AGR0BN-1213 absolute rotary encoder

,

Multiturn absolute rotary encoder

,

Pepperl+Fuchs absolute rotary encoder

Product Description



Pepperl+Fuchs Multiturn absolute rotary encoder PVM58N-011AGR0BN-1213





Specification




Part Number: PVM58N-011AGR0BN-1213
Manufacturer: Pepperl+Fuchs
Condition : Brand New
Warranty : 12 months
Product Type Inductive sensor





                            Pepperl+Fuchs Multiturn Absolute Rotary Encoder PVM58N-011AGR0BN-1213 0

Datasheet excerpt: Technical data of PVM58

General specifications
Detection type photoelectric sampling
Device type Multiturn absolute rotary encoder
Electrical specifications
Operating voltage 10 ... 30 V DC
No-load supply current max. 230 mA at 10 V DC
max. 100 mA at 24 V DC
Power consumption max. 2.5 W
Time delay before availability < 1000 ms
Linearity ± 2 LSB at 16 Bit, ± 1 LSB at 13 Bit, ± 0,5 LSB at 12 Bit
Output code binary code
Code course (counting direction) programmable,
cw ascending (clockwise rotation, code course ascending)
cw descending (clockwise rotation, code course descending)
Interface
Interface type PROFIBUS
Resolution
  Single turn up to 16 Bit
  Multiturn 14 Bit
  Overall resolution up to 30 Bit
Transfer rate 0.0096 ... 12 MBit/s
Standard conformity PNO profile 3.062, RS-485
Connection
Terminal compartment in removable housing cover
Standard conformity
Degree of protection DIN EN 60529, IP65
IP66, IP67 (with shaft seal)
Climatic testing DIN EN 60068-2-30 , no moisture condensation
Emitted interference EN 61000-6-4:2007
Noise immunity EN 61000-6-2:2005
Shock resistance DIN EN 60068-2-27, 100 g, 6 ms
Vibration resistance DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz
Approvals and certificates
UL approval cULus Listed, General Purpose, Class 2 Power Source
Ambient conditions
Operating temperature -40 ... 85 °C (-40 ... 185 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Material
  Combination 1 housing: powder coated aluminum
flange: aluminum
shaft: stainless steel
  Combination 2 (Inox) housing: stainless steel
flange: stainless steel
shaft: stainless steel
Mass approx. 600 g (combination 1)
approx. 1200 g (combination 2)
Rotational speed max. 12000 min -1
Moment of inertia 30 gcm2
Starting torque ≤ 3 Ncm (version without shaft seal)
Shaft load
  Axial 40 N
  Radial 110 N
Dimensions
  Diameter 58 mm



Classifications







System Classcode
ECLASS 13.0 27270502
ECLASS 12.0 27270502
ECLASS 11.0 27270502
ECLASS 10.0.1 27270502
ECLASS 9.0 27270502
ECLASS 8.0 27270502
ECLASS 5.1 27270502
ETIM 9.0 EC001486
ETIM 8.0 EC001486
ETIM 7.0 EC001486
ETIM 6.0 EC001486
ETIM 5.0 EC001486
UNSPSC 12.1 39121527
