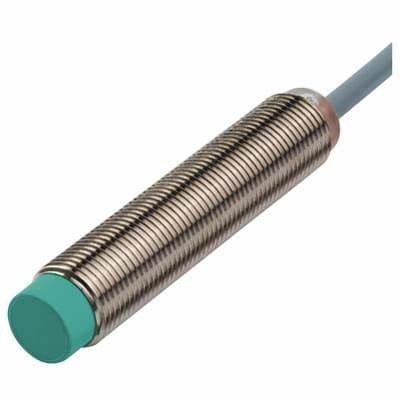

Pepperl+Fuchs P+F Inductive sensor NCB4-12GM40-N0 Inductive sensor
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

Pepperl+Fuchs P+F Inductive sensor NCB4-12GM40-N0 Inductive sensor

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Payment Method: T/T
Supply Capacity: 100PCS/MONTHS
Details Information
Product Description
Detail Information
Place of Origin
Germany
Brand Name
Pepperl+Fuchs
Certification
UL,CCC,etc.
Model Number
NCB4-12GM40-N0
Manufacturer:
Pepperl+Fuchs
Product NO.:
NCB4-12GM40-N0
Product Type:
Inductive Sensor
Warranty:
1 Year
Moq:
1 Set
Highlight:

NCB4-12GM40-N0 Inductive sensor

,

P+F Inductive sensor

,

Pepperl+Fuchs Inductive sensor

Product Description



Pepperl+Fuchs P+F Inductive sensor NCB4-12GM40-N0 Inductive sensor



Specification



Part Number: NCB4-12GM40-N0
Manufacturer: Pepperl+Fuchs
Condition : Brand New
Warranty : 12 months
Product Type Inductive sensor





Pepperl+Fuchs P+F Inductive sensor NCB4-12GM40-N0 Inductive sensor 0



General specifications
Switching function Normally closed (NC)
Output type NAMUR
Rated operating distance 4 mm
Installation flush
Assured operating distance 0 ... 3.24 mm
Actual operating distance 3.6 ... 4.4 mm typ.
Reduction factor rAl 0.41
Reduction factor rCu 0.39
Reduction factor r304 0.78
Output type 2-wire
Nominal ratings
Nominal voltage 8.2 V (Ri approx. 1 kΩ)
Switching frequency 0 ... 1500 Hz
Hysteresis 1 ... 15 typ. 5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection yes
Suitable for 2:1 technology yes , Reverse polarity protection diode not required
Current consumption
  Measuring plate not detected min. 2.2 mA
  Measuring plate detected ≤ 1 mA
Switching state indicator all direction LED, yellow
Functional safety related parameters
Safety Integrity Level (SIL) SIL 2
MTTFd 3010 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Compliance with standards and directives
Standard conformity
  NAMUR EN 60947-5-6:2000
IEC 60947-5-6:1999
  Electromagnetic compatibility NE 21:2007
  Standards EN IEC 60947-5-2
Approvals and certificates
IECEx approval
  Equipment protection level Ga IECEx PTB 11.0037X
  Equipment protection level Gb IECEx PTB 11.0037X
  Equipment protection level Da IECEx PTB 11.0037X
  Equipment protection level Mb IECEx PTB 11.0037X
ATEX approval
  Equipment protection level Ga PTB 00 ATEX 2048 X
  Equipment protection level Gb PTB 00 ATEX 2048 X
  Equipment protection level Da PTB 00 ATEX 2048 X
UL approval
  Ordinary Location E87056
  Hazardous Location E501628
  Control drawing 116-0452
CCC approval
  Hazardous Location 2020322315002255
NEPSI approval
  NEPSI certificate GYJ16.1393X
CML approval on request
ANZEx 18.3018X
Marine approval DNVGL TAA00001A5
Ambient conditions
Ambient temperature -25 ... 100 °C (-13 ... 212 °F)
Storage temperature -40 ... 100 °C (-40 ... 212 °F)
Mechanical specifications
Connection type cable
Housing material Stainless steel 1.4305 / AISI 303
Sensing face PBT
Degree of protection IP66 / IP67
Cable
  Cable diameter 4.8 mm ± 0.2 mm
  Bending radius > 10 x cable diameter
  Material PVC
  Core cross section 0.34 mm2
  Length 2 m
Dimensions
  Length 40 mm
  Diameter 12 mm
General information
Scope of delivery 2 self locking nuts in scope of delivery
Use in the hazardous area see instruction manuals
