MOQ: | 1set |
Price: | $1--$1000 |
Standard Packaging: | 100% original package |
Delivery Period: | 1-10 working days |
Payment Method: | L/C, D/A, D/P, T/T |
Supply Capacity: | 100PCS/MONTHS |
Product Description
* The 2551 Magmeter measures the flow rate in a full pipe by monitoring the voltage produced when the (conductive) fluid moves through a magnetic field. Output options include a traditional frequency signal, a serial data (Digital (S3 L)) output, and a 4 to 20 mA output.
* The 2551 Magmeter is available in three sizes that will accommodate pipes from ½ inch through 36 inch diameters.
* Select from three different material combinations to match the Magmeter to the application requirements.
Product Information
Sensor Body - Polypropylene and 316L SS
4 to 20 mA output
Installs into pipe sizes DN15 to DN100 (1/2" to 4")
Patented Magmeter technology
No moving parts
Bi-directional flow
Empty pipe detection
Operating range: 0.05 to 10 m/s (0.15 to 33 ft/s)
Accurate measurement even in dirty liquids
Polypropylene or PVDF retaining nuts
No pressure drop
Corrosion-resistant materials; PP or PVDF with SS, Hastelloy-C, or Titanium
Multi-language display menu available
General |
|||
Operating Range |
0.05 to 10 m/s |
0.15 to 33 ft/s |
|
Pipe Size Range |
DN15 to DN900 |
½ in. to 36 in. |
|
Linearity |
± 1% reading plus 0.1% of full scale |
||
Repeatability |
±0.5% of reading @ 25 °C (77 °F) |
||
Minimum Conductivity |
20 μS/cm |
||
Wetted Materials |
|||
Sensor Body/Electrodes |
-P0, -P1, -P2: PP/316L SS |
||
-T0, -T1, -T2: PVDF/Titanium |
|||
-V0, -V1, -V2: PVDF/Hastelloy-C |
|||
O-rings |
FPM (standard) |
||
Case |
PBT |
||
Display Window |
Polyamide (transparent nylon) |
||
Protection Rating |
NEMA 4X/IP65 |

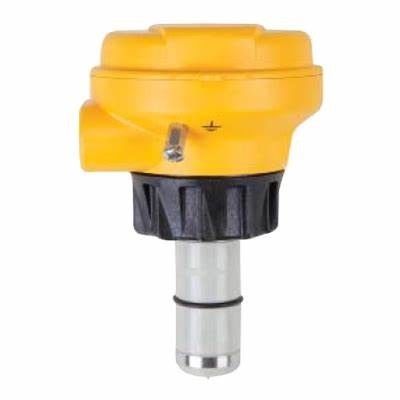

Product Photo
