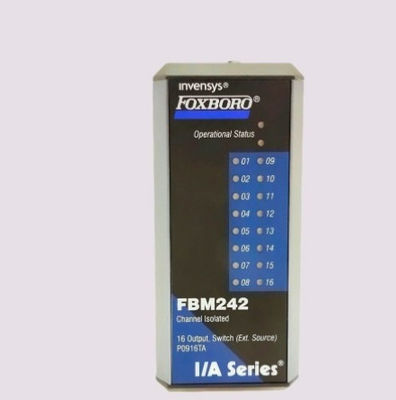

FBM242 Foxboro by Schneider Electric Externally Sourced, Discrete Output Interface Module
  • Name
  • Name

FBM242 Foxboro by Schneider Electric Externally Sourced, Discrete Output Interface Module

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Foxboro Externally Sourced Discrete Output Interface Module
Payment Method: T/T
Supply Capacity: 100PCS/MONTHS
Details Information
Product Description
Detail Information
Brand Name
Foxboro
Certification
CE
Model Number
FBM242
Manufacturer:
Foxboro
Product NO.:
FBM242
Part Number:
RH916TA
Relative Humidity:
5 To 95% (noncondensing)
Output Channels:
16 Isolated Channels
Applied Voltage:
15 To 60 V Dc (maximum)
Load Current:
2.25 A (maximum) Per Channel
Shipping Weight:
2 Kg
Highlight:

FBM242 Discrete Output Interface Module

,

FBM242 Foxboro Discrete Output Interface Module

,

Externally Sourced Discrete Output Interface Module

Product Description

FBM242 Foxboro ( by Schneider Electric ) Externally Sourced, Discrete Output Interface Module



The FBM242 contains 16 discrete output channels that are compatible with voltages and currents commonly found in industrial plants. An external power supply is used to energize the field circuits.



OVERVIEW

The FBM242 Discrete Output Module contains 16 discrete output channels, which are sourced externally, rated up to 2 A at 60 V dc. Associated termination assemblies (TAs) provide for discrete outputs to loads of 2 A at 60 V dc, relay outputs (120 V ac/125 V dc, or 240 V ac), or relay outputs with power distribution and fusing. Each output is fully isolated from other channels and ground. The module interfaces electrical output signals from a control processor to the field devices. It executes a digital I/O application program, with ladder logic support, and provides a Fail-Safe Configuration option for the outputs.



FEATURES

Key features of the FBM242 modules are:

• Sixteen discrete outputs
• Supports discrete output signals at voltages of:
       • 15 to 60 V dc
       • 120 V ac/125 V dc
       • 240 V ac
• Each input and output is galvanically isolated; group isolated when used with external excitation
• Rugged design suitable for enclosure in Class G3 (harsh) environments

• Executes the Discrete I/O or Ladder Logic program, with the following configurable options: Input Filter Time, Fail Safe Configuration, FailSafe        Fall-Back, and Sustained or Momentary Outputs
• Various Termination Assemblies (TAs) that contain:
      • Current limiting devices
      • Fuses
      • Relay outputs with external power source, fusing, and power distribution
      • Solid state outputs
      • Redundant power distribution.





FBM242 Foxboro by Schneider Electric Externally Sourced, Discrete Output Interface Module 0



Related Product Recommendation

P0917MF P0973JM
P0916AA P0973KJ
P0916CC P0926GX
P0916AC RH914XS
P0916AE RH926EQ
P0917LH 0C RH914SQ
RH926GH P09160Q
AD202MW RH916TA
P0931RQ RH914SV
