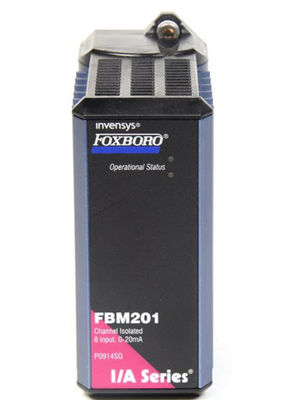

Foxboro FBM201 RH914SQ Analog Input Interface Module
  • Name
  • Name

Foxboro FBM201 RH914SQ Analog Input Interface Module

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
RH914SQ Analog Input Interface Module 8 Isolated And Independent Channels
Payment Method: T/T
Supply Capacity: 100PCS/MONTHS
Details Information
Product Description
Detail Information
Brand Name
Foxboro
Certification
CE
Model Number
FBM201
Condition:
New And Original
Manufacturer:
Foxboro
Product NO.:
FBM201
Part Number:
RH914SQ
Input Channels:
8 Isolated And Independent Channels
Input Range (each Channel:
0 To 20 MA Dc
Relative Humidity:
5 To 95% (noncondensing)
Vibration:
7.5 M/s2 (0.75 G) From 5 To 500 Hz
Highlight:

FBM201 Analog Input Interface Module

,

RH914SQ Analog Input Interface Module

,

Foxboro FBM201 RH914SQ

Product Description

Foxboro FBM201 RH914SQ Analog Input Interface Module



OVERVIEW

Each FBM201/b/c/d Analog Input Module contains eight analog input channels, each channel accepting a 2–wire, dc input from an analog sensor such as a 4 to 20 mA or 0 to 5 V transmitter, or a self-powered 20 mA source. The modules perform the signal conversion required to interface the electrical input signals from the field sensors to the optionally redundant fieldbus. The FBM201 is electrically compatible with standard HARTsignals.



FEATURES

• 8 channels for input of analog sensor signals: 0 to 20 mA dc
• Each analog input channel is galvanically isolated from other channels and ground
• Rugged design suitable for enclosure in Class G3 (harsh) environments
• Execution of an analog input application program that provides conversion time and configurable options for integration time and Rate of Change      Limits
• High accuracy achieved by sigma-delta data conversions for each channel
• Termination Assemblies (TAs) for locally or remotely connecting field wiring to the FBM201/b/c/d modules
• TAs for per channel internally and/or externally loop powered transmitters



High Accuracy

For high accuracy, the modules incorporate sigma-delta data conversion on a perchannel basis, which can provide a new analog input reading every 25 ms, and a configurable integration period to remove any process and/or electromagnetic noise. Each time period, the FBM converts each analog input to a digital value, averages these values over the time period, and provides the averaged value to the controller.



Foxboro FBM201 RH914SQ Analog Input Interface Module 0



Related Product Recommendation

P0917MF P0973JM
P0916AA P0973KJ
P0916CC P0926GX
P0916AC RH914XS
P0916AE RH926EQ
P0917LH 0C RH914SQ
RH926GH P09160Q
AD202MW RH916TA
P0931RQ RH914SV
