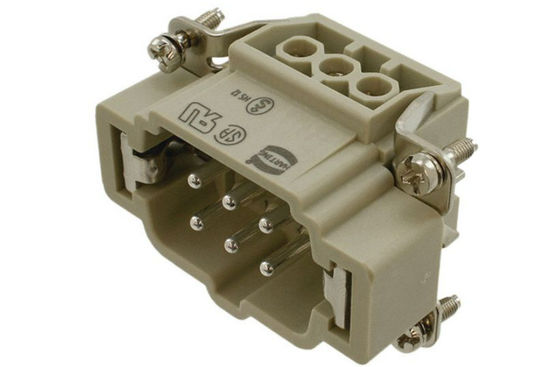

09 33 006 2601 Harting Connector Han 6 B Rated Voltage 500 V

09 33 006 2601 Harting Connector Han 6 B Rated Voltage 500 V

MOQ: 1
Price: variable
Standard Packaging: 8*5*3cm
Delivery Period: 3-5DAYS
Han E 06 Pos. M Insert Screw -40 ... +125 °C 6 B
Payment Method: T/T
Supply Capacity: 1000PCS/MONTHS
Detail Information
Brand Name
Harting
Certification
CE
Model Number
09 33 006 2601
Manufacturer:
Harting
Part Number:
09 33 006 2601
Gender:
Male
Size:
6 B
Rated Current:
16 A
Rated Voltage:
500 V
Contact Resistance:
≤1 MΩ
Stripping Length:
7.5 Mm
Highlight:

09 33 006 2601 Harting Connector Han

,

500 V Harting Connector Han

,

09 33 006 2601

Product Description

09 33 006 2601 Han E 06 Pos. M Insert Screw



Heavy Duty Power Connectors HAN E 6P MALE SCREW SCREW TERMINATION



Identification

Category Inserts
Series Han E®



Version

Termination method Screw termination
Gender Male
Size 6 B
With wire protection Yes
Number of contacts 6
PE contact Yes



Technical characteristics

Conductor cross-section 0.75 ... 2.5 mm²
Conductor cross-section AWG 18 ... AWG 14
Rated current 16 A
Rated voltage 500 V
Rated impulse voltage 6 kV
Pollution degree 3
Rated voltage acc. to UL 600 V
Rated voltage acc. to CSA 600 V
Insulation resistance >1010 Ω
Contact resistance ≤1 mΩ
Stripping length 7.5 mm
Tightening torque 0.5 Nm
Limiting temperature -40 ... +125 °C
Mating cycles ≥500



09 33 006 2601 Harting Connector Han 6 B Rated Voltage 500 V 0
