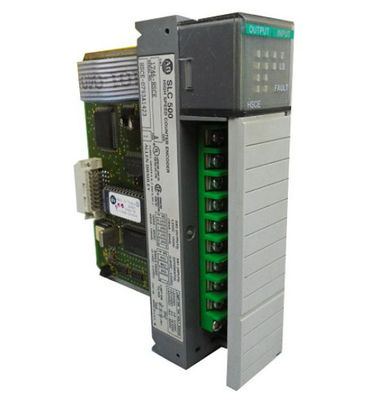

1746-HSCE Allen Bradley SLC High Speed Module



The Allen-Bradley 1746-HSCE is a High-Speed counter module. This module is part of the SLC500 Programmable Logic Controller (PLC) platform. It features bidirectional counting and comes with inputs A, B and Z compatible with nominal signal voltages of 5VDC differential input and 0-5VDC single ended input with maximum input frequency of 50 kHz. It also has a limit switch input and Four (4) open collector outputs. It may be configured to operate in Range, Rat and Sequencer mode.



The 1746-HSCE features input A, B and Z with nominal input voltage of 5VDC for differential wiring and 0-5VDC for Single-ended wiring. It accepts a minimum pulse width of 10 µs duration with pulse separation of 4.5 µs. The accepted input frequencies of these input sets depend on the configured mode of the module. When operating as Sequencer mode, the compatible maximum input frequency is 50 kHz and 32,767kHz when operating in Range Rate mode. Additionally, the 1746-HSCE has a limit switch input with ON-state voltage range of 3.8-5.4VDC, 9.4-16.5VDC and 16.5-30VDC @ 5VDC, 12VDC and 24VDC nominal voltages, respectively.



The 1746-HSCE also has Four (4) open collector outputs which operate at voltage levels of 4.5 to 10V dc and (Switch 2 on) and 10 to 30V dc (Switch 2 off) with ON-state current ratings of 16 mA at 4.5V dc 40 mA at 10V dc and 40 mA at 10V dc 125 mA at 30V dc.



1746-HSCE The Perfect Solution for Your Customer Requirements 0



Technical Specifications

Manufacturer Rockwell Automation
Operating Temperature 0°C to +60°C (+32°F to +140°F)
On-State output Current 16 mA at 4.5V dc 40 mA at 10V dc; 40 mA at 10V dc 125 mA at 30V dc
No. of outputs Four (4) open-collector outputs
Max. Input Frequency Sequencer and Range: 50k Hz Rate: 32.767k Hz
Min. Pulse separation 4.5 µs
Min. Pulse width 10 µs
Input voltage ±5V dc (Differential); 0-5VDC (Single-ended)
No. of channels One (1) counting channel
Recommended cable Belden 9503 or equivalent
Maximum cable length 305 m (1000 ft)
Backplane Current 320 mA at +5V; 0 mA at +24V
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Relative Humidity 5 to 95% (without condensation)
Series SLC 500
Module Type High-Speed Counter module
Inputs 1 Count Input
Outputs 4
Input Frequency Range 50 kilohertz
Backplane Current (5 Volts) 32 milliamps
I/O Connection 1746-RT25G
Update Time 4.8 milliseconds
Slots 1
Step Response 100 milliseconds in, 2.5 milliseconds out
Isolation Voltage 1500 Volts
UPC 10662073893681
Tags:

Allen Bradley Input/Output Modules,

Allen Bradley Variable Frequency Drive (VFD),

Allen Bradley PLC Programmable Controllers
