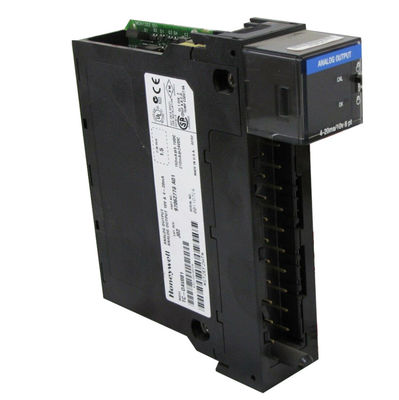

TC-OAV081 Honeywell 8-channel Analogue Output Module

TC-OAV081 Honeywell 8-channel Analogue Output Module

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Honeywell 8 Channel Analogue Output Module 10-Volt Or 4-20mA Output
Payment Method: T/T
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
USA
Brand Name
honeywell
Certification
CE
Model Number
TC-OAV081
Manufacturer:
Honeywell
Product NO.:
TC-OAV081
Product Type:
Analog Output Module
Number Of Points:
8 Channels
Voltage Output Range:
10.4 V
Current Output Range:
0 To 21 MA
Voltage Resolution:
320 V Per Count
Power Dissipation:
6.9 W Max
Highlight:

Honeywell 8 channel Analogue Output Module

,

8 channel Honeywell Analogue Output Module

,

TC-OAV081 Honeywell Analogue Output Module

Product Description

TC-OAV081 Honeywell 8-channel Analogue Output Module



The Honeywell TC-OAV081 stands as an 8-channel analog output module, offering 10-volt or 4-20 mA output capabilities. Although it has been discontinued, certain suppliers still carry it.

This module features a voltage output range spanning from -10.4 to 10.4 volts and a current output range of 0 to 21 mA. Its voltage resolution amounts to 320 mV per count, while the current resolution is 100 microamperes per count.

It exhibits compatibility with various PLCs, including the Honeywell TDC5000, TDC3000, and TDC2000 series, as well as other industrial control systems.

This DIN rail-mountable module operates within a temperature range of -25 to 70 degrees Celsius and holds an IP65 rating for protection against dust and water.



Key features

8-channel analog output
10-volt or 4-20 mA output
Voltage output range: -10.4 to 10.4 volts
Current resolution: 100 microamperes per count
Compatible with various PLCs
DIN rail-mountable
Operating temperature range: -25 to 70 degrees Celsius
IP65 rating for dust and water protection
Voltage Output Range : 10.4 V
Current Output Range : 0 to 21 mA
Voltage Resolution : 320 V per count
Current Resolution : 650 A per count
Output Overvoltage Protection : 24 VAC/VDC continuous at room temperature
Open Short Circuit Protection : Electronically current limited to 21 mA or less
Drive Capability : >2000 (Voltage) 0-750 (Current)
Calibrated Accuracy @ 25°C : Better than 0.05% of range From 4 to 21 ma (Current) From –10.4V to +10.4V(Voltage)
RFI Immunity : Error of less than 2.0% of range at 10 V/m, 27 to 1000 MHz
Module Update Rate for All Channels : 25 ms
Output Settling Time : Less than 2 ms to 95% of final value with resistive loads
Isolation Voltage User to system : 100% Tested at 2550VDC for 1s
Power Dissipation : 6.9 W max
Connection Terminal Blocks : TC-TBNH, 20-position terminal block



TC-OAV081 Honeywell 8-channel Analogue Output Module 0
